Description

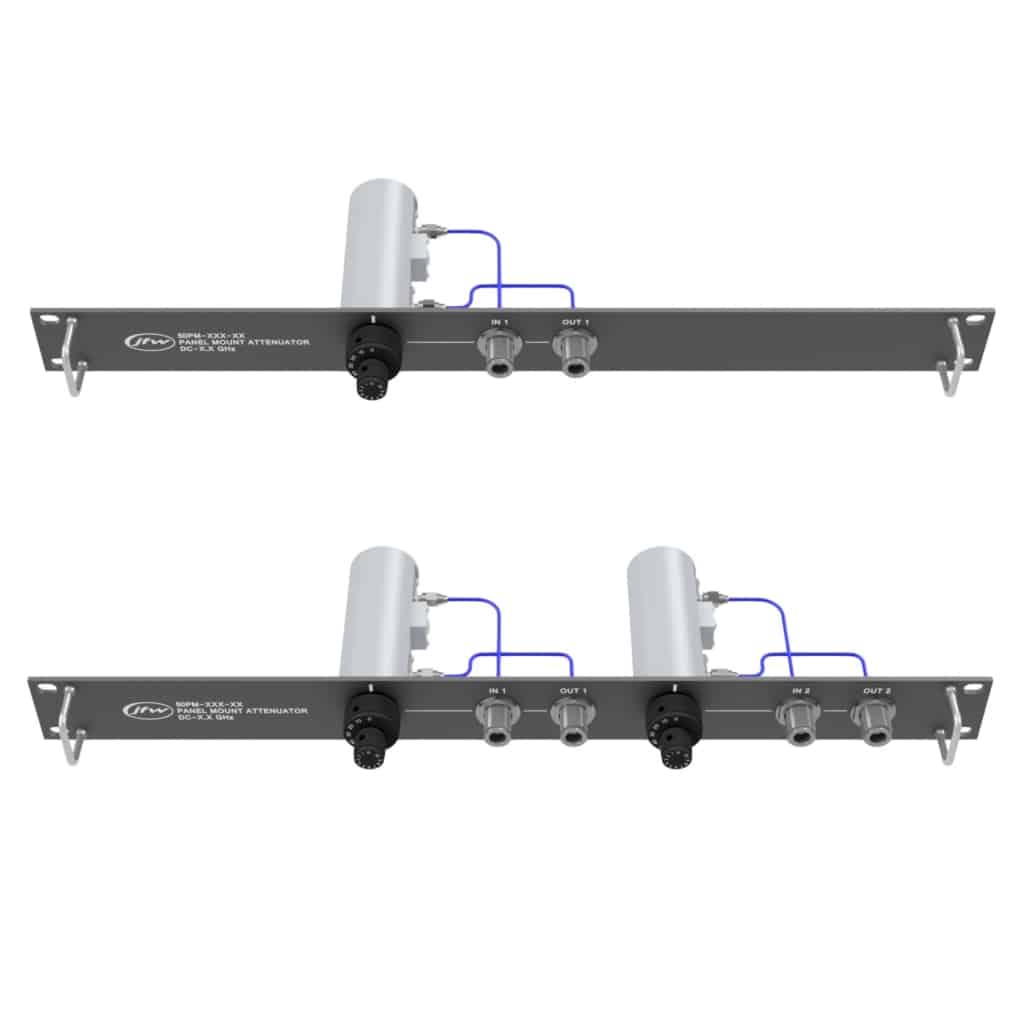

Model 50PM-165-XX consists of 50 Ohm manual attenuators mounted to a 19 inch rack mountable panel. All of the RF connectors are front facing on the front panel. The manual attenuators have attenuation range 0-80dB by 1dB steps and operate DC-3000 MHz. The attenuators are rated for 2 Watts average RF power. The attenuators are dual rotary type (i.e. two manual knobs). The small knob is 1dB step. The large knob is 10dB step. They are available with N female or SMA female.
Example Models
50PM-165-01 N (1 attenuator, 2 N female)
50PM-165-02 N (2 attenuators, 4 N female)
50PM-165-03 N (3 attenuators, 6 N female)
50PM-165-01 SMA (1 attenuator, 2 SMA female)
50PM-165-02 SMA (2 attenuators, 4 SMA female)
50PM-165-03 SMA (3 attenuators, 6 SMA female)
50PM-165-04 SMA (4 attenuators, 8 SMA female)
50PM-165-05 SMA (5 attenuators, 10 SMA female)
