Description

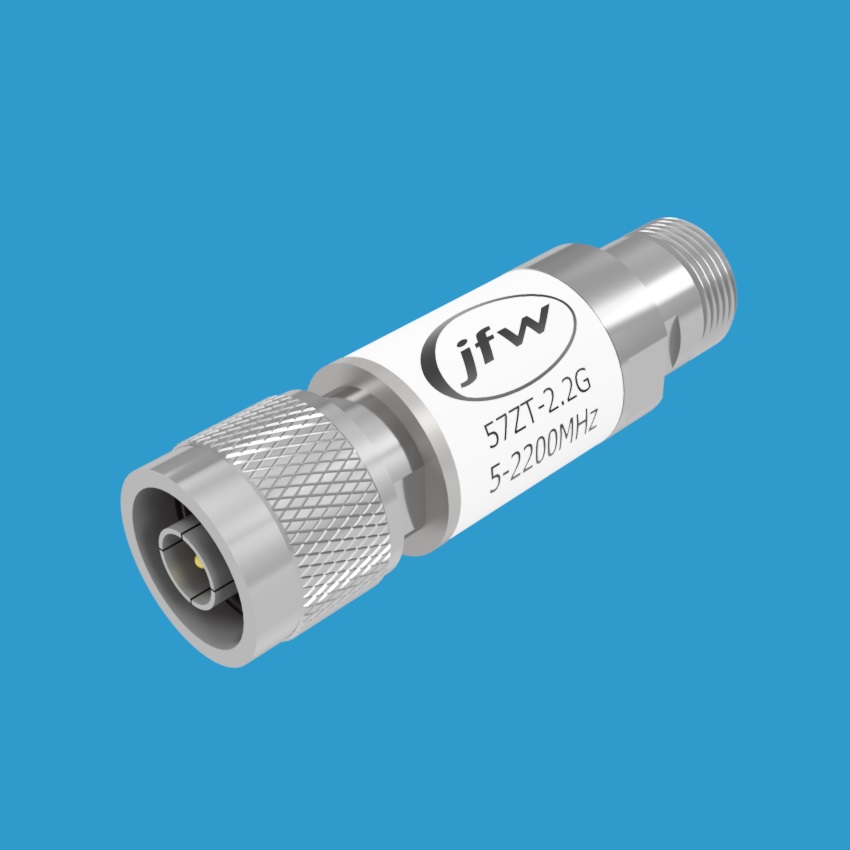

Model 57ZT-2.2G is an impedance matching transformer (50 Ohm to 75 Ohm). It covers 5-2200 MHz and is available with BNC, F, N and SMA connectors.
Impedance Matching Transformer 5-2200 MHz | 57ZT-2.2G
JFW Model #: 57ZTT-2.2G
Impedance: 50 Ohm to 75 Ohm
Frequency Start: 5 MHz
Frequency Stop: 2200 MHz
Attenuation Loss: 1.8 dB
50 Ohm End Connector: BNC, N, SMA
75 Ohm End Connector: BNC, F, N
Documentation: Data Sheet | Drawing
Additional information
| 50 Ohm Connector | BNC Female, BNC Male, N Female, N Male, SMA Female, SMA Male |
|---|---|
| 75 Ohm Connector |
