Description

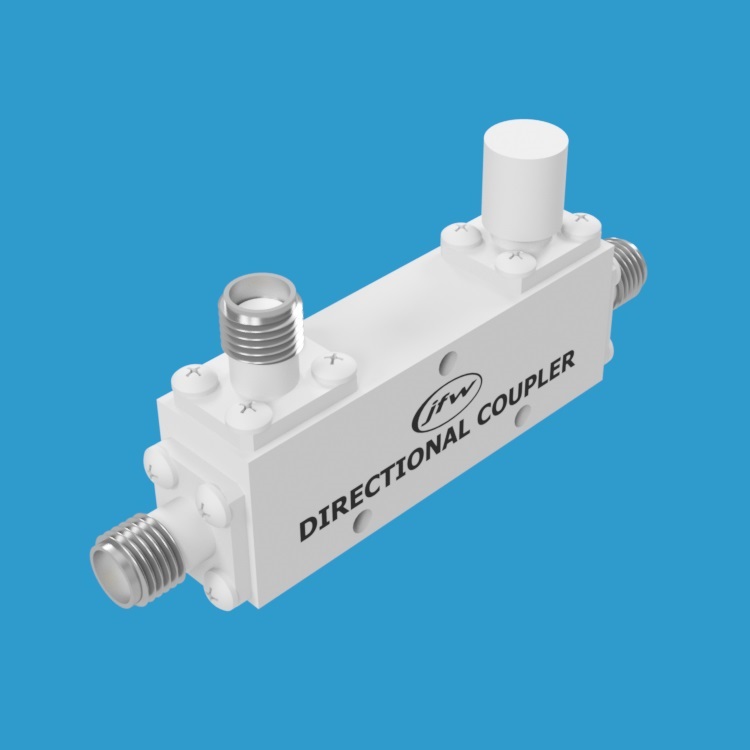

Model 50C-076-XX is a directional coupler with SMA female connectors. This model operates 2-18 GHz and is rated for 50 Watts of RF input power. This model has three ports: Input Port, Output Port, and Coupled Port. Due to its reactive directional design, it couples in one direction only.
RF path descriptions:
- INPUT to OUTPUT: insertion loss
- OUTPUT to INPUT: insertion loss
- INPUT to COUPLED PORT: coupled value
- COUPLED PORT to INPUT: coupled value
- OUTPUT to COUPLED PORT: isolation
- COUPLED PORT to OUTPUT: isolation
