Description

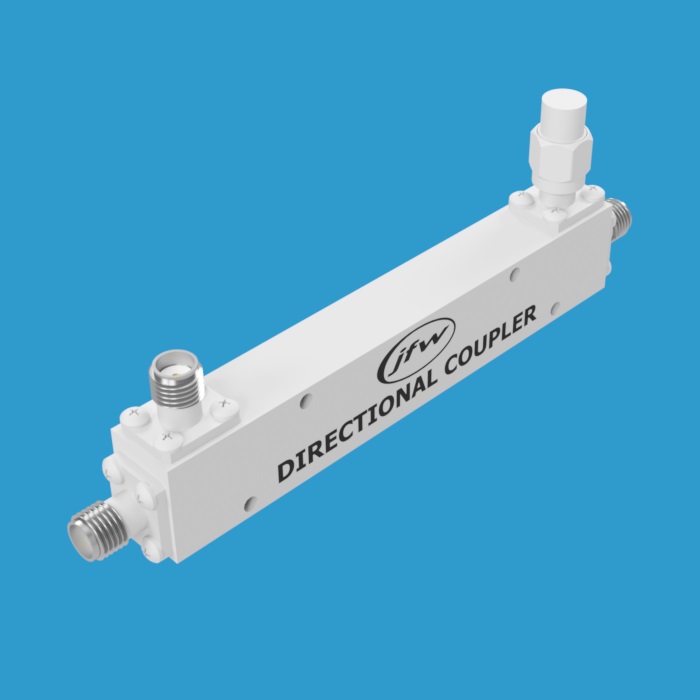

Model 50C-081-XX is a directional coupler with 2.92mm female connectors. This model operates 1-40 GHz and is rated for 20 Watts of RF input power. This model has three ports: Input Port, Output Port, and Coupled Port. Due to its reactive directional design, it couples in one direction only.
RF path descriptions:
- INPUT to OUTPUT: insertion loss
- OUTPUT to INPUT: insertion loss
- INPUT to COUPLED PORT: coupled value
- COUPLED PORT to INPUT: coupled value
- OUTPUT to COUPLED PORT: isolation
- COUPLED PORT to OUTPUT: isolation
