Description

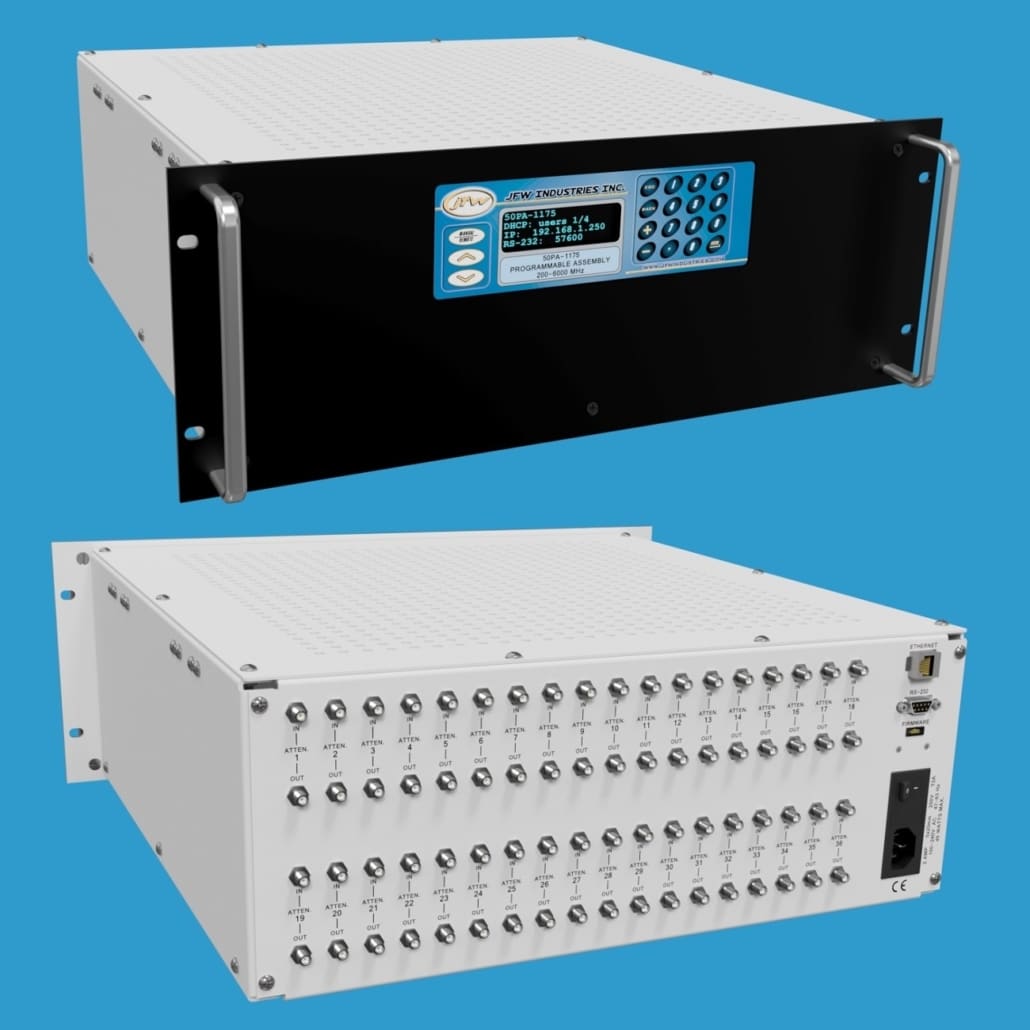

Model 50PA-1175 is a 19 inch rack mount attenuator assembly containing 36 solid-state step attenuators. It is available with N female or SMA female connectors. The attenuators have an attenuation range of 0 to 95dB by 1dB steps and operate at 200 MHz to 6 GHz. The attenuators can be controlled manually with the keypad or remotely via Ethernet or Serial connection.
Manual Attenuator Control
The manual control menu allows you to set/read an attenuator, fade an attenuator, or perform a handover using two attenuators.
Remote Attenuator Control
This attenuator assembly can be remotely controlled via an Ethernet connection or a serial connection (i.e. RS-232). The network settings can be changed manually with the keypad or remotely using the NET remote command. The network interface can be set to either DHCP mode or Fixed Address mode. All new test systems are shipped from the factory in DHCP mode. A RS-232 connection to the test system is made using a null modem type serial cable. Baud rates up to 155200 baud are available. The baud rate can be changed manually with the keypad or remotely with the SERIAL remote command.
