Description

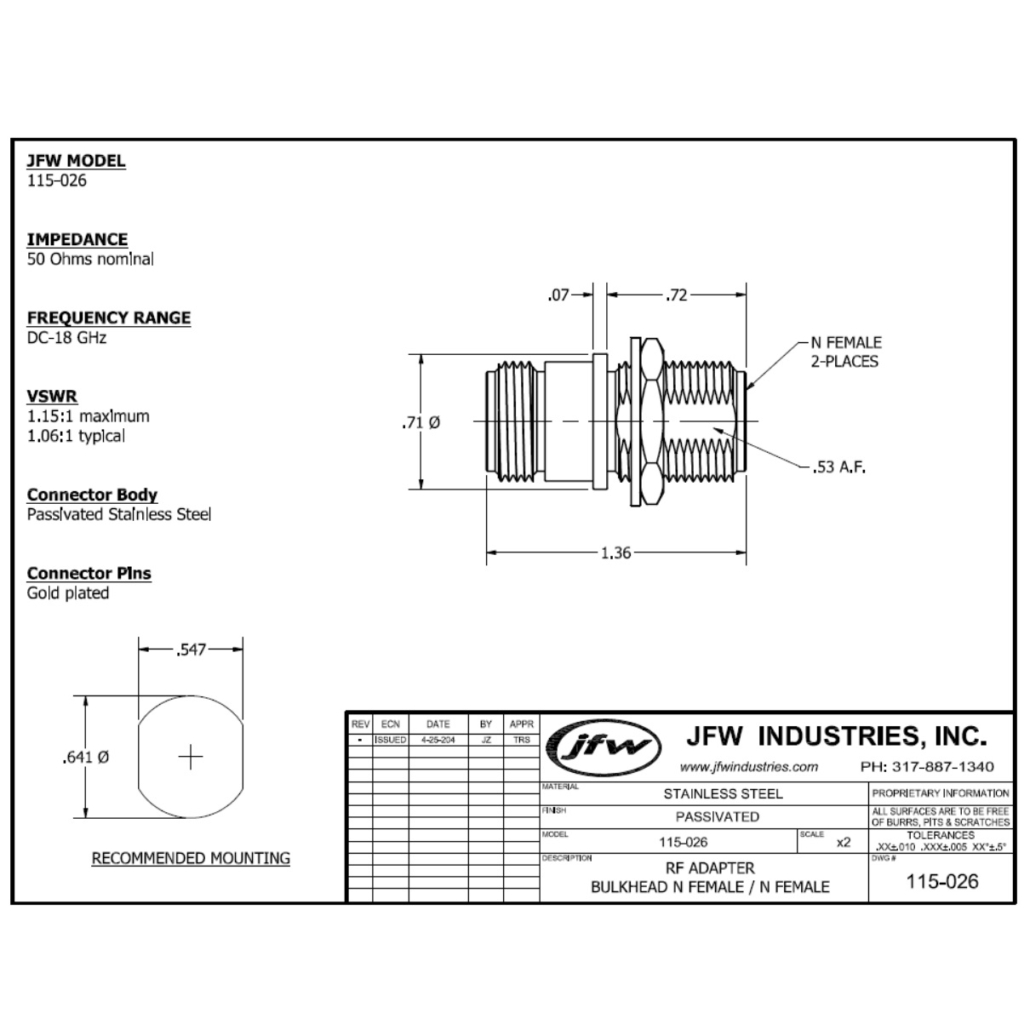

Model 115-026 is a 50Ω bulkhead RF adapter. It is N female/female and operates DC-18 GHz. The recommended mounting pattern is shown on the outline drawing.
Adapter N female/female Bulkhead DC-18 GHz | 115-026
JFW Model #: 115-026
Product Type: RF adapter
Impedance: 50 Ohm
RF Connectors: N female/female (bulkhead)
Frequency Range: DC-18 GHz
Description: Stainless Steel
Documentation: Data Sheet
