Description

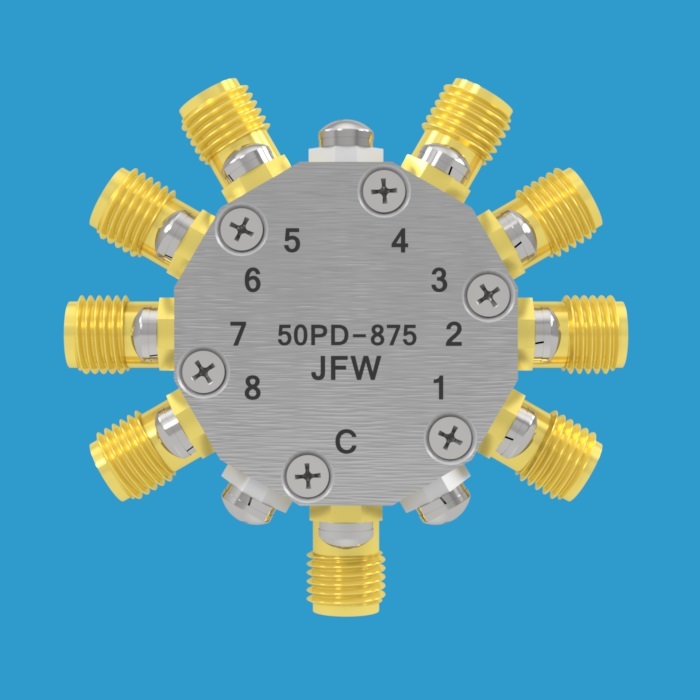

Model 50PD-875 is a 50 Ohm resistive 8-Way power divider/combiner that has isolation paths. It operates DC-6 GHz and is rated for 0.5 Watt of RF input power. It is available with 50 Ohm SMA female coaxial RF connectors.
Insertion loss paths: COM port to J1/J8 port (i.e. common port to combiner port)
Isolation paths: J1/J8 port to J1/J8 port (i.e. combiner port to combiner port)
Example Insertion Loss Paths:
- COM to J1 = -23.4 dB typical
- COM to J2 = -23.4 dB typical
- J1 to COM = -23.4 dB typical
- J2 to COM = -23.4 dB typical
Example Isolation Paths:
- J1 to J2 = -46.8 dB typical
- J1 to J3 = -46.8 dB typical
- J6 to J7 = -46.8 dB typical
- J6 to J8 = -46.8 dB typical
