Description

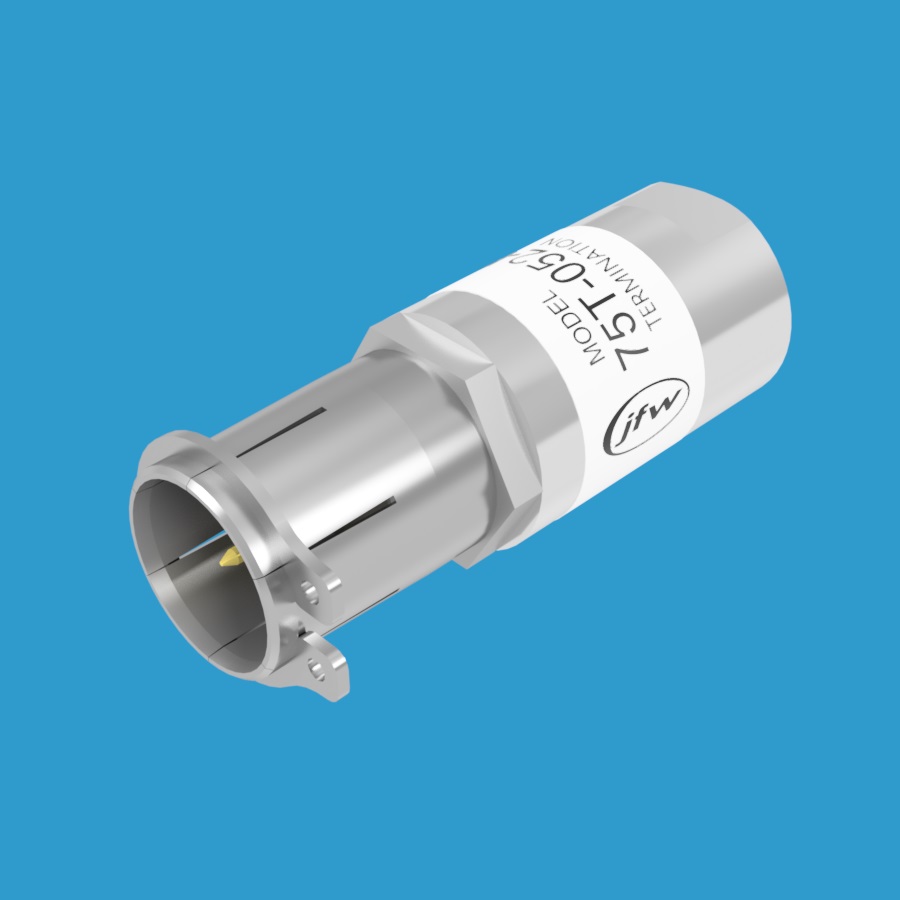

Model 75T-052-P is a 75 Ohm termination (aka dummy load) that operates DC-3000 MHz. It is available with push-on F male RF connectors and rated for 1 Watt RF input power.
1 Watt Termination DC-3 GHz | 75T-052-P F male
JFW Model #: 75T-052-P
Impedance: 75 Ohm
Frequency Range: DC-3000 MHz
RF Input Power: 1 Watt
RF Connectors: Precision F Male Push-On
Documentation: Data Sheet | Drawing
