Description

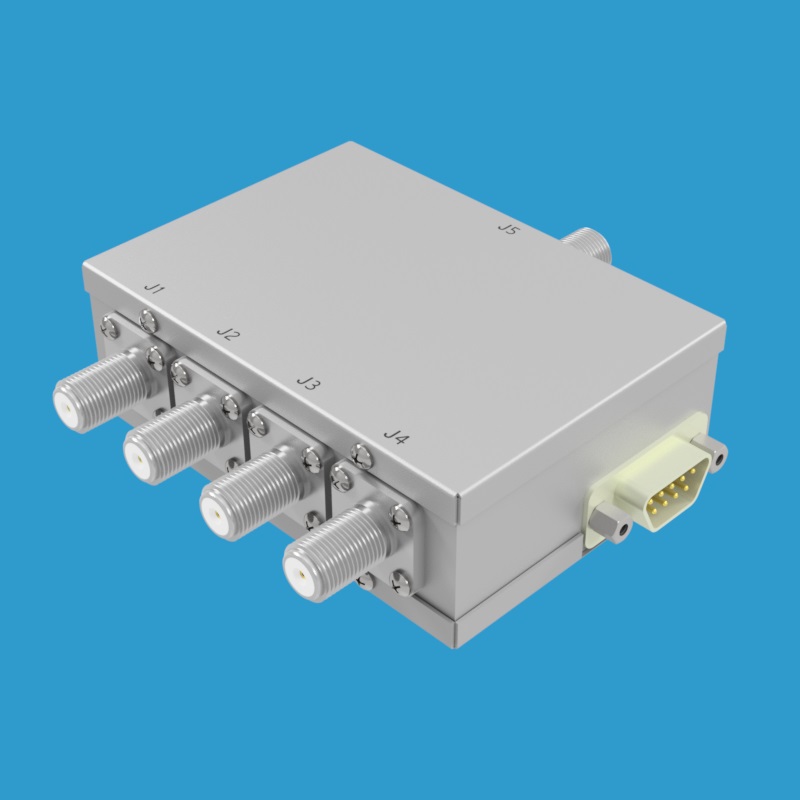

Model 75S-386 is a 75 Ohm solid-state 1P4T RF switch operating 5-1000 MHz rated for +10dBm (5-100 MHz) and +20dBm (100-1000MHz). This RF switch is absorptive type (i.e. self-terminating). The unused port will self-terminate at 75 Ohm impedance. It is available with 75 Ohm RF connectors: BNC or F female. The 1P4T RF switch has four TTL control lines. If all control lines are TTL low, the switch will be in an all off setting.
