Description

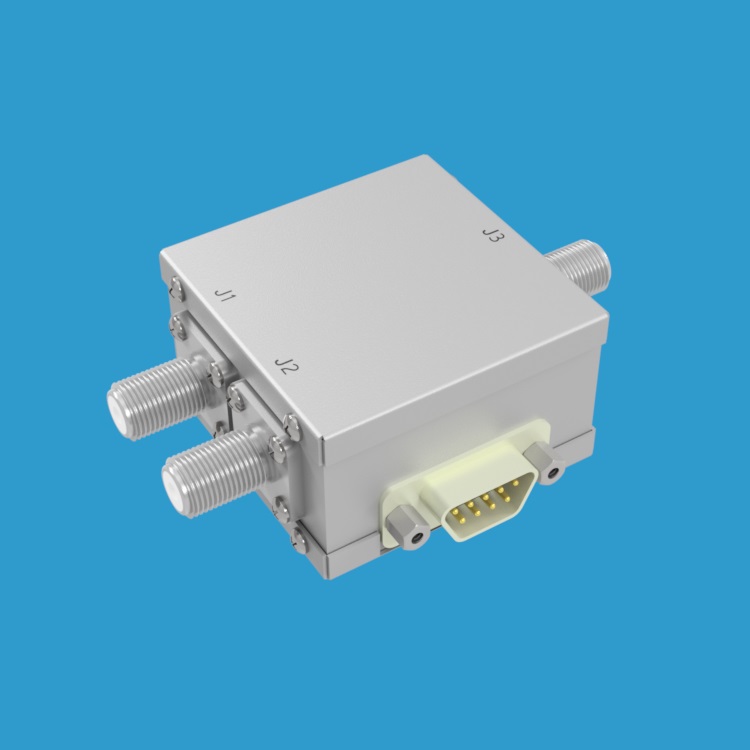

Model 75S-385 is a 75 Ohm solid-state 1P2T RF switch operating 5-1000 MHz with RF input power rating of +10dBm (5-100 MHz) and +20dBm (100-1000 MHz). This model is absorptive (i.e. self-terminating). The unused port will self-terminate at 75 Ohm impedance. It is available with 75 Ohm RF connectors: BNC or F female. The 1P2T RF switch has two TTL control lines. If both control lines are TTL low, then both RF paths are turned off.
