Description

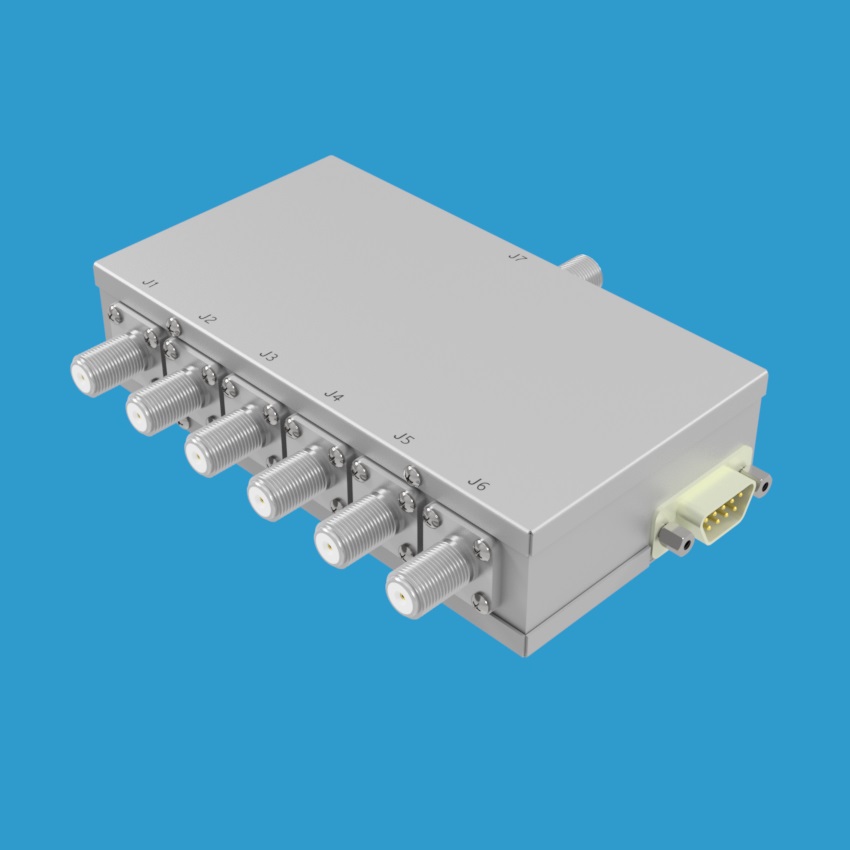

Model 75S-374 is a 75 Ohm solid-state 1P6T RF switch operating 5-2150 MHz. It is rated for RF power of +10dBm at 5 MHz and +20dBm above 100 MHz. This model is absorptive (i.e. self-terminating). The unused ports will self-terminate at 75 Ohm impedance. It is available with 75 Ohm RF connectors: BNC or F female. The 1P6T RF switch has six control lines. Each control line is activated with TTL signal levels.
