Description

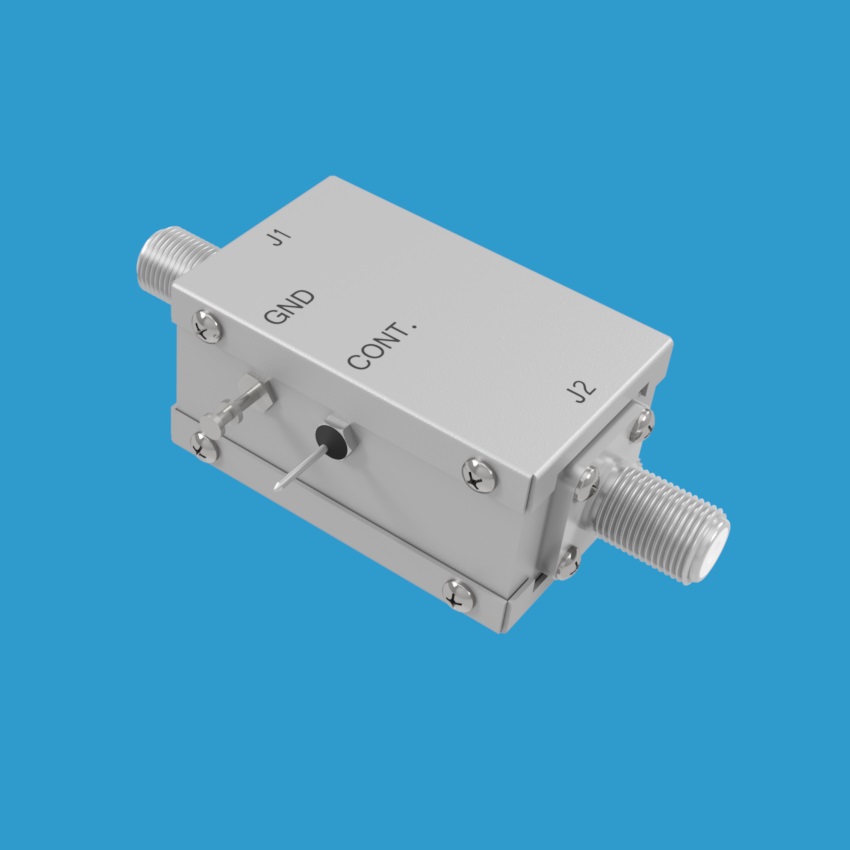

Model 75S-348 is a 75 Ohm electro-mechanical 1P1T RF switch operating DC-2150 MHz. The 1P16T is normally open and absorptive (i.e. self-terminating). When the 1P1T is turned off both ports will self-terminate at 75 Ohm impedance. Available with 75 Ohm RF connectors: BNC female or F female. This 1P1T RF switch has one control line. The control line is activated with +12Vdc signal level.
