Description

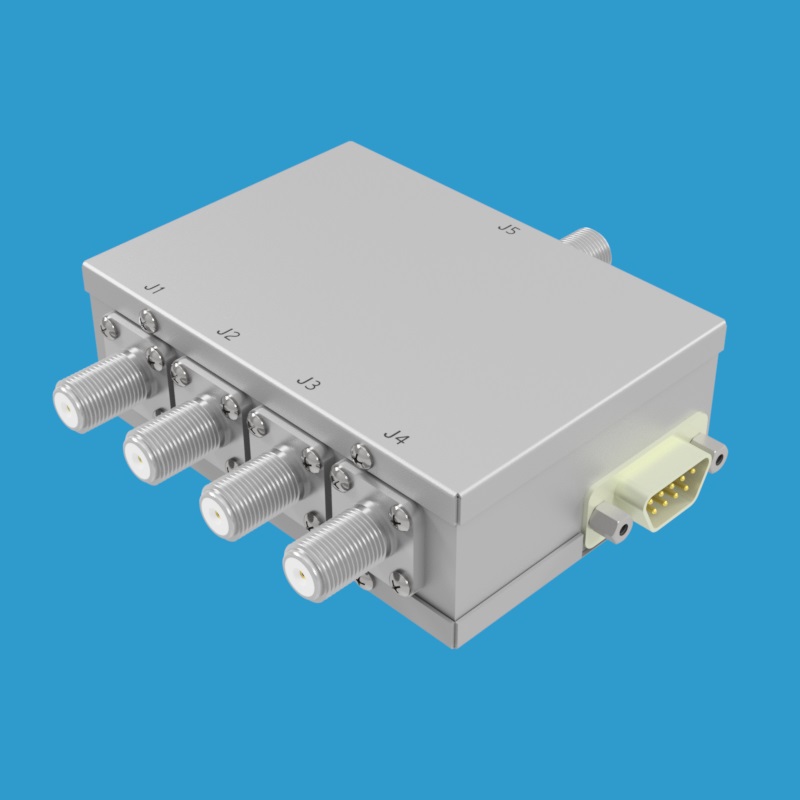

Model 75S-333 is a 75 Ohm solid-state 1P4T RF switch operating 950-2150 MHz rated for +30dBm (i.e. 1 Watt) of RF input power. This model is absorptive (i.e. self-terminating). The unused ports will self-terminate at 75 Ohm impedance. It is available with F female RF connectors. The 1P4T RF switch has four control lines. Each control line is activated with TTL signal levels.
