Description

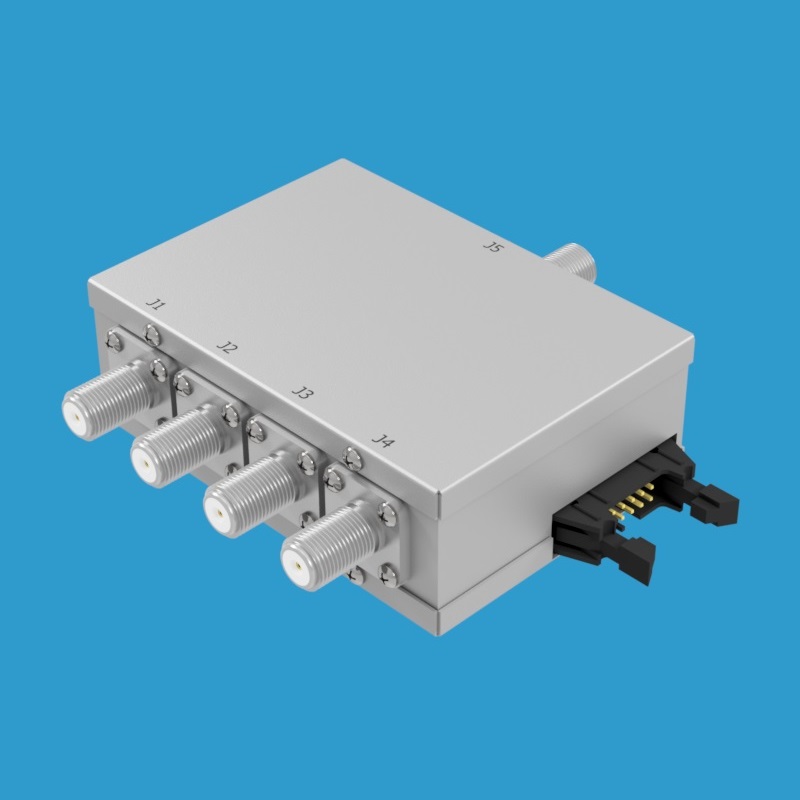

Model 75S-327 is a 75 Ohm solid-state 1P4T RF switch operating 5-1000 MHz. It is rated for RF power of +10dBm at 5 MHz and +20dBm above 20 MHz. . This model is absorptive (i.e. self-terminating). The unused ports will self-terminate at 75 Ohm impedance. It is available with 75 Ohm RF connectors: BNC or F female. The 1P4T RF switch has three BCD control lines. Each control line is activated with TTL signal levels.
