Description

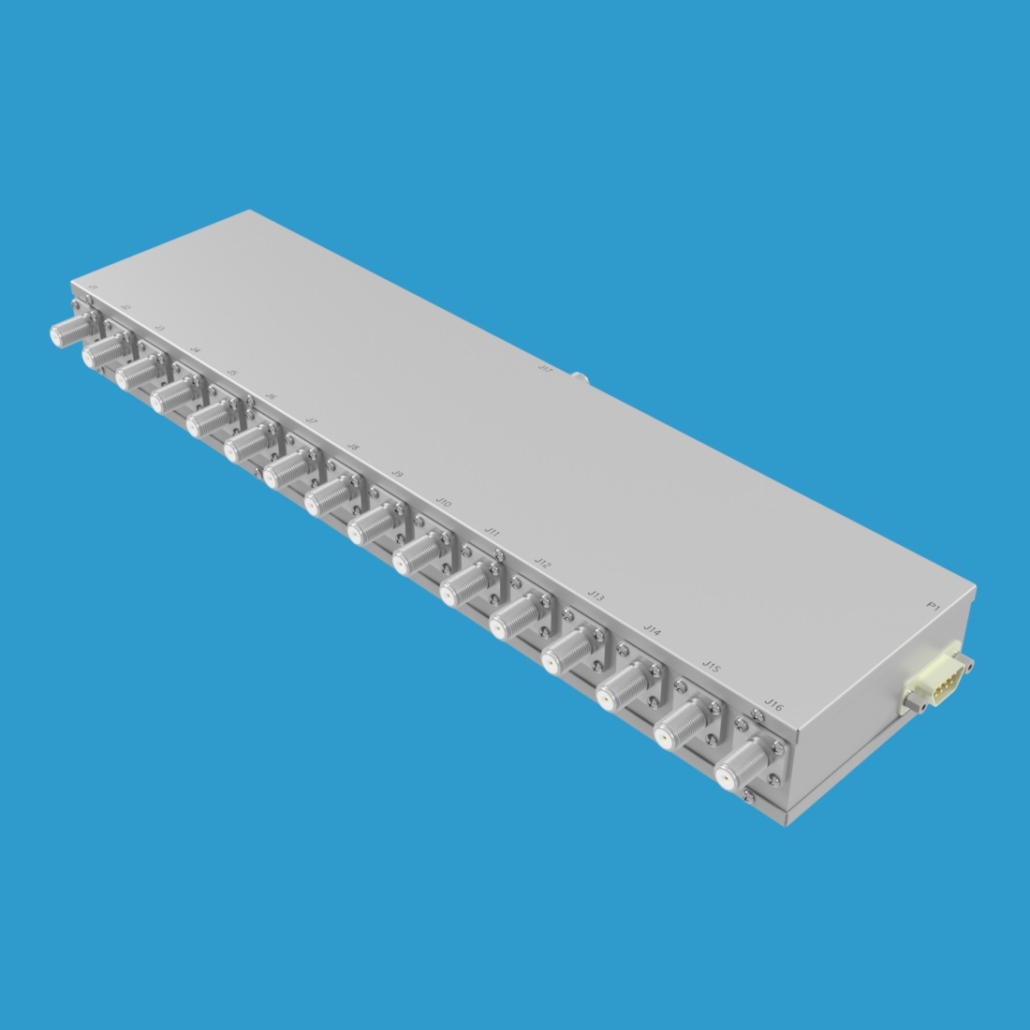

Model 75S-303 is a high isolation 75 Ohm electro-mechanical 1P16T RF switch operating DC-2150 MHz. The isolation is specified at 70dB minimum. The 1P16T is failsafe and absorptive (i.e. self-terminating). The unused ports will self-terminate at 75 Ohm impedance. Available with 75 Ohm RF connectors: BNC female or F female. This 1P16T RF switch has four BCD control lines. Each control line is activated with TTL signal levels.
