Description

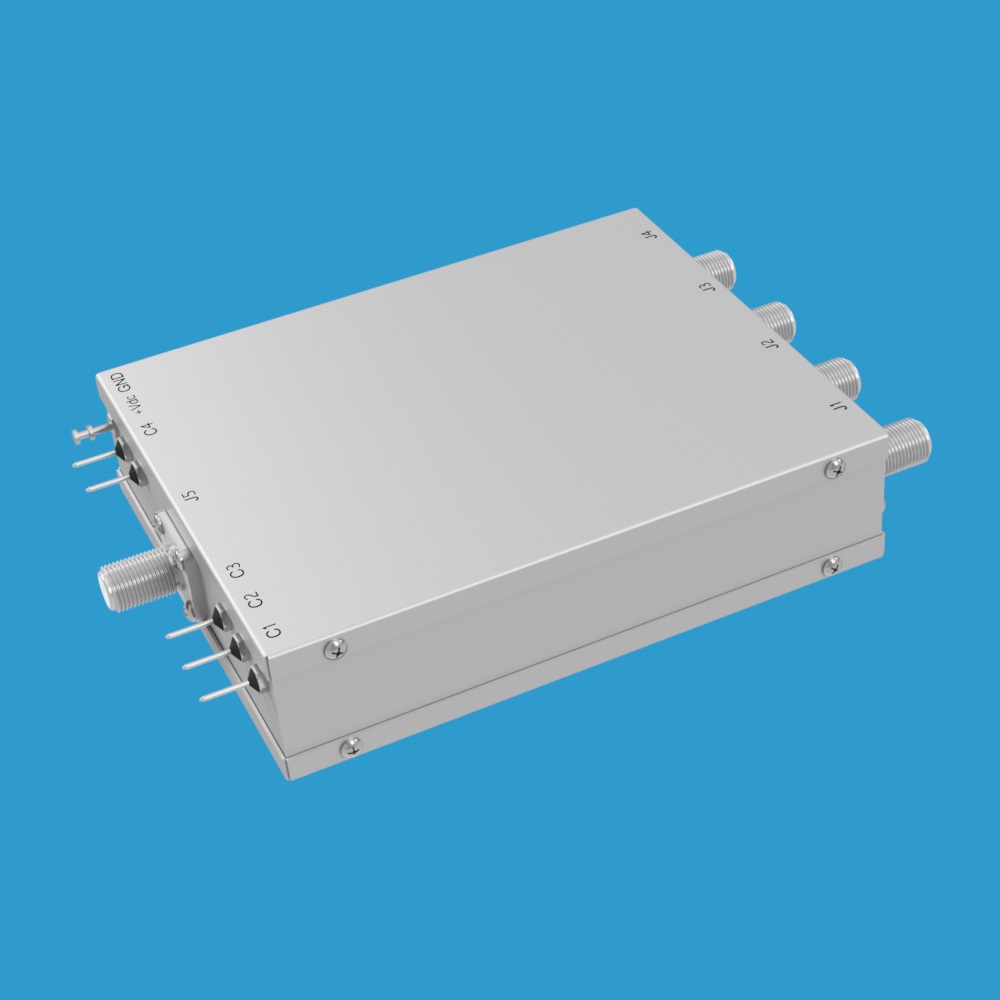

Model 75S-295 is a high isolation 75 Ohm electro-mechanical 1P4T RF switch operating DC-2000 MHz. The isolation is specified at 80dB minimum. The 1P4T is normally open and absorptive (i.e. self-terminating). The unused ports will self-terminate at 75 Ohm impedance. Available with 75 Ohm RF connectors: BNC female or F female. This 1P4T RF switch has four control lines. Each control line is activated with TTL signal levels.
