Description

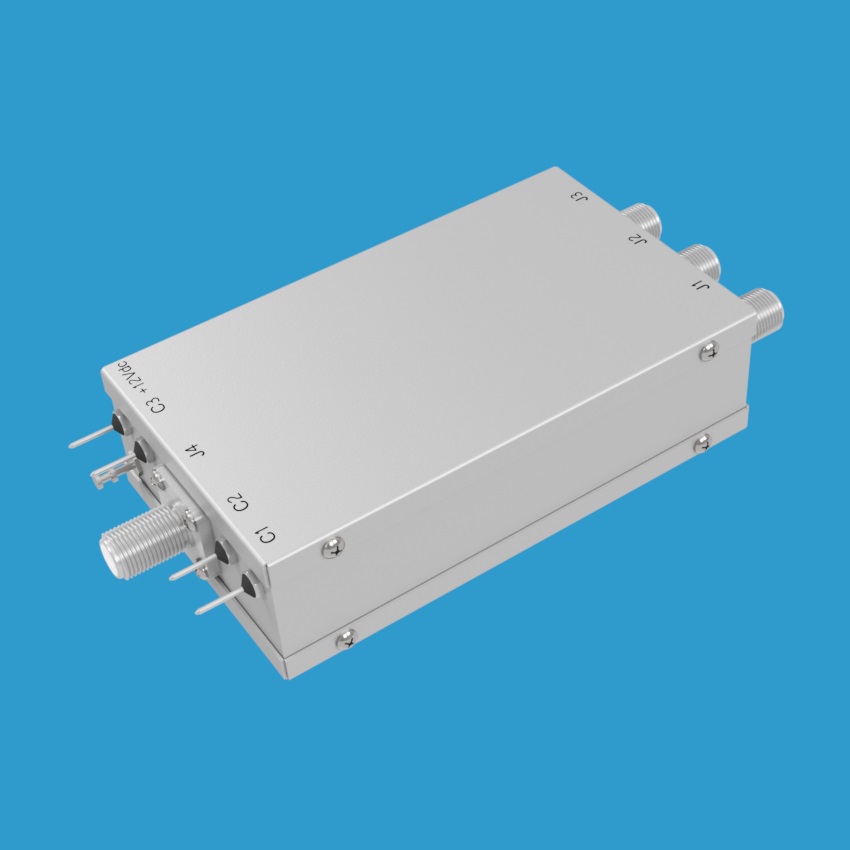

Model 75S-285 is a high isolation 75 Ohm electro-mechanical 1P3T RF switch operating DC-2000 MHz. The isolation is specified at 80dB minimum. The 1P3T is normally open and absorptive (i.e. self-terminating). The unused ports will self-terminate at 75 Ohm impedance. It is available with 75 Ohm F female RF connectors. This 1P3T RF switch has three control lines. Each control line is activated with TTL signal levels.
