Description

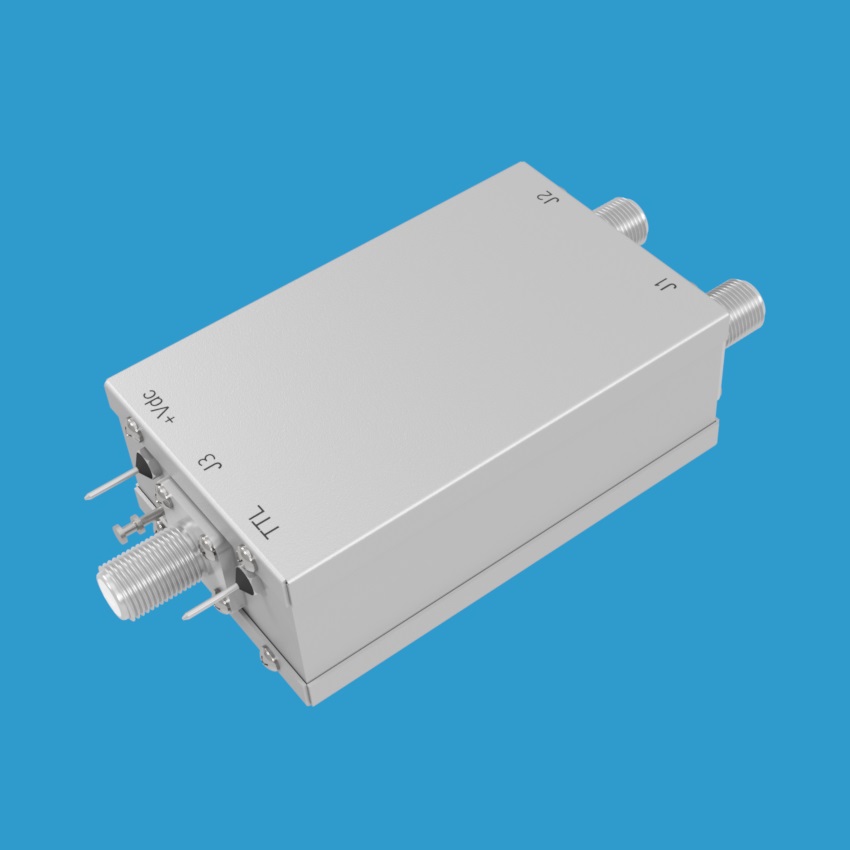

Model 75S-284 is a high isolation 75 Ohm electro-mechanical 1P2T RF switch operating DC-2000 MHz. The isolation is specified at 80dB minimum. The 1P2T is failsafe and absorptive (i.e. self-terminating). The unused port will self-terminate at 75 Ohm impedance. Available with 75 Ohm RF connectors: F female or N female. This 1P2T RF switch has one control line. The control line is activated with TTL signal levels.
