Description

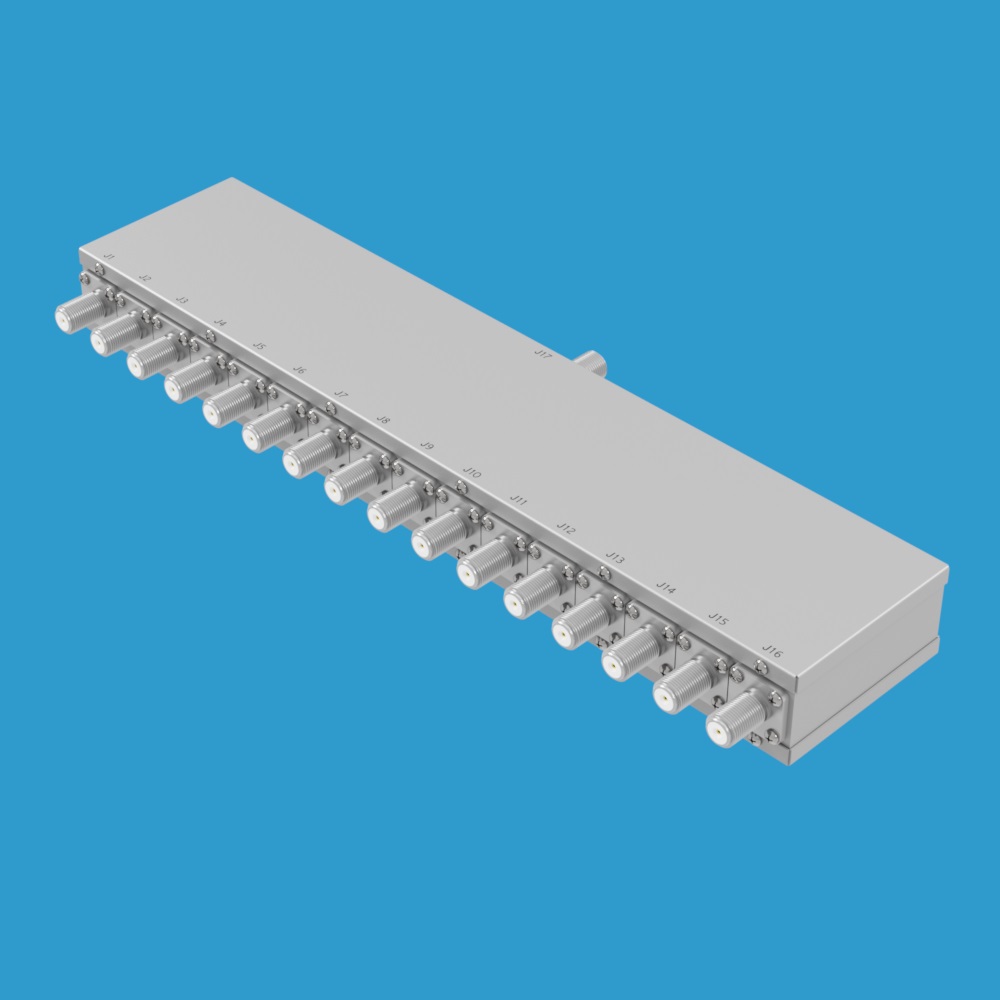

Model 75S-264 is a 75 Ohm solid-state 1P16T RF switch operating 20-1000 MHz rated for +20dBm of RF input power. This model is absorptive (i.e. self-terminating). The unused ports will self-terminate at 75 Ohm impedance. It is available with 75 Ohm RF connectors: BNC or F female. The 1P16T RF switch has five BCD control lines. Each control line is activated with TTL signal levels.
