Description

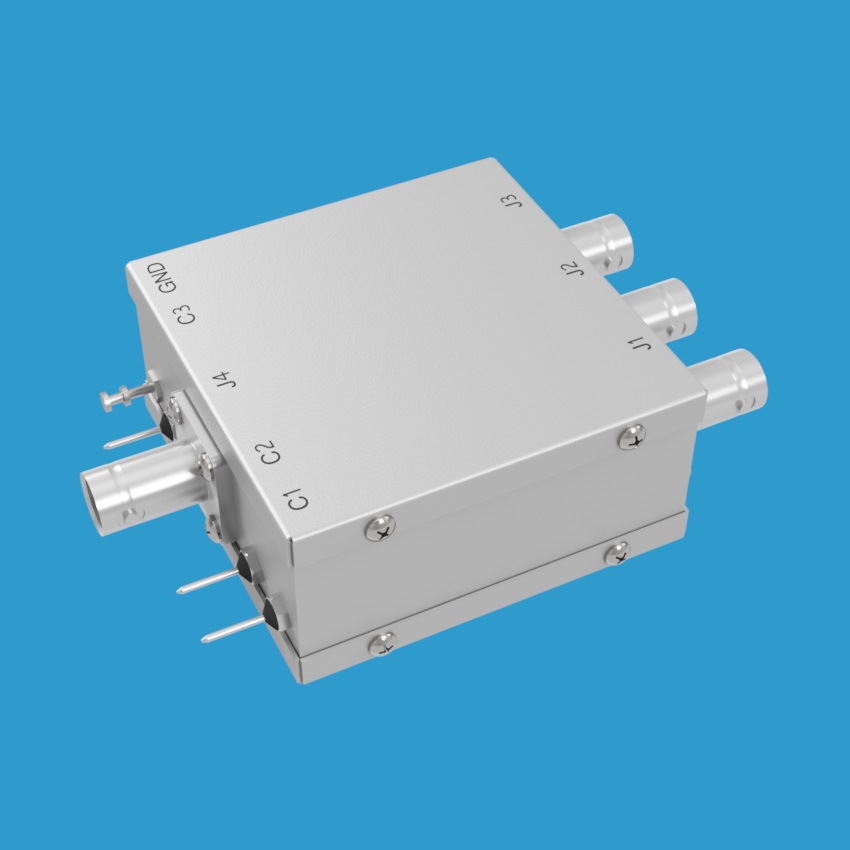

Model 75S-118 is a 75 Ohm electro-mechanical 1P3T RF switch operating DC-2150 MHz. The 1P3T is normally open and absorptive (i.e. self-terminating). The unused ports will self-terminate at 75 Ohm impedance. Available with 75 Ohm RF connectors: BNC female or F female. This 1P3T RF switch has three control lines. Each control line is activated with +12 Vdc signal level.
