Description

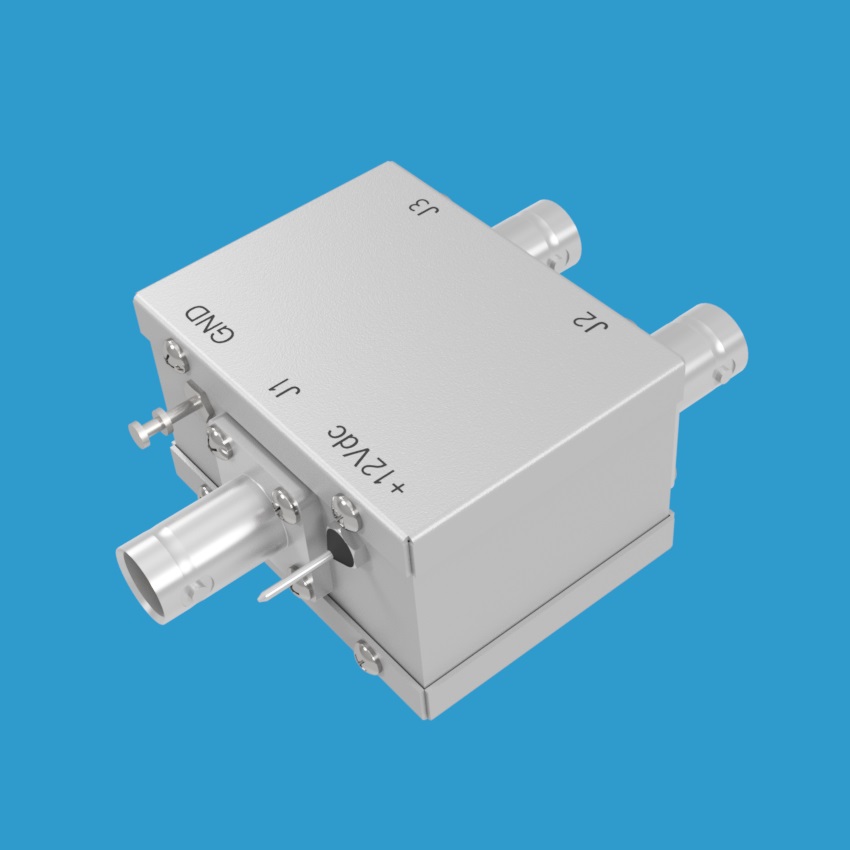

Model 75S-072 is a 75 Ohm electro-mechanical 1P2T RF switch operating DC-1450 MHz. The 1P2T is failsafe and absorptive (i.e. self-terminating). The unused port will self-terminate at 75 Ohm impedance. Available with 75 Ohm RF connectors: BNC, F or N. This 1P2T RF switch has one control line. The control line is activated with +XX Vdc signal levels (i.e. +12Vdc, +24Vdc).
