Description

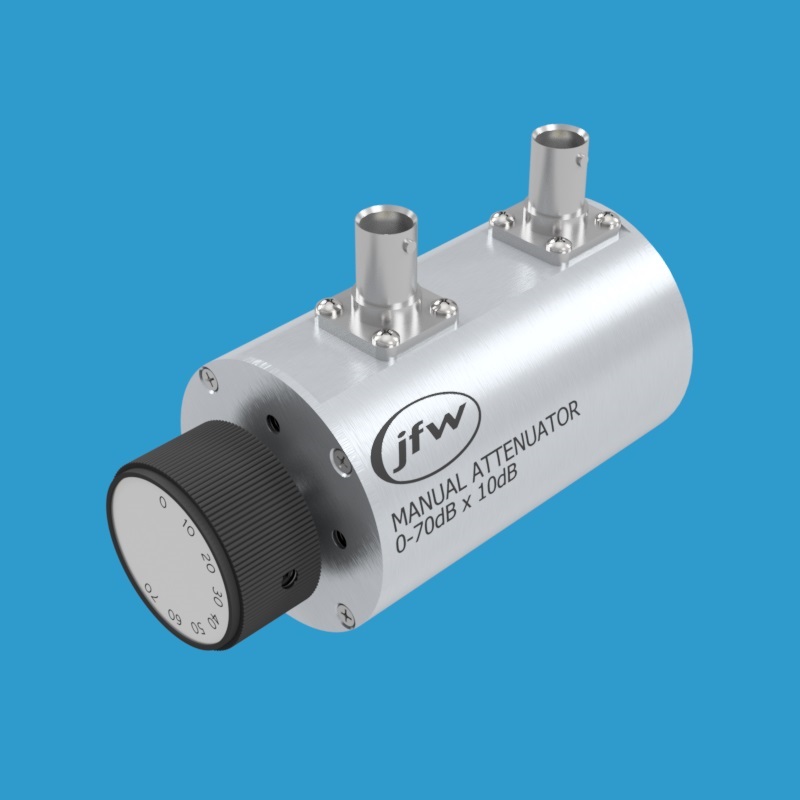

Model 75R-055 is a 75 Ohm manual step attenuator with attenuation range 0 to 70dB by 10dB steps. It operates DC-1000 MHz and is rated for 1 Watt average RF power. It is a single rotary attenuator (i.e. one manual knob). It is available with 75 Ohm coaxial RF connectors: BNC female, F female or N female. The attenuator has four mounting holes in the front plate to allow for panel mounting.
