Description

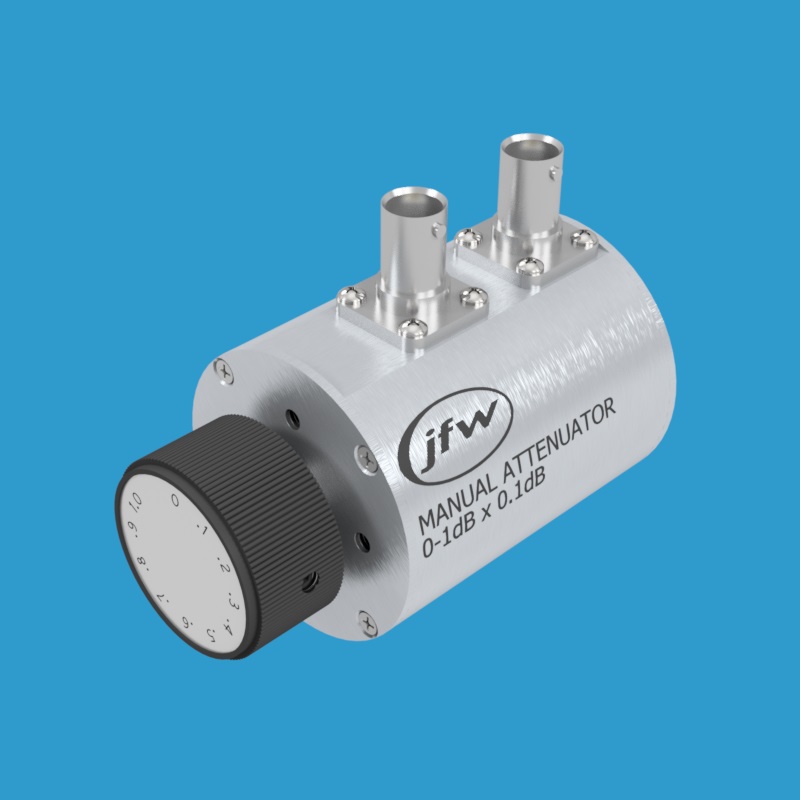

Model 75R-006 is a 75 Ohm manual step attenuator with attenuation range 0 to 1dB by 0.1dB steps. It operates DC-500 MHz and is rated for 1 Watt average RF power. It is a single rotary attenuator (i.e. one manual knob). It is available with 75 Ohm coaxial RF connectors: BNC female or F female. The attenuator has four mounting holes in the front plate to allow for panel mounting.
