Description

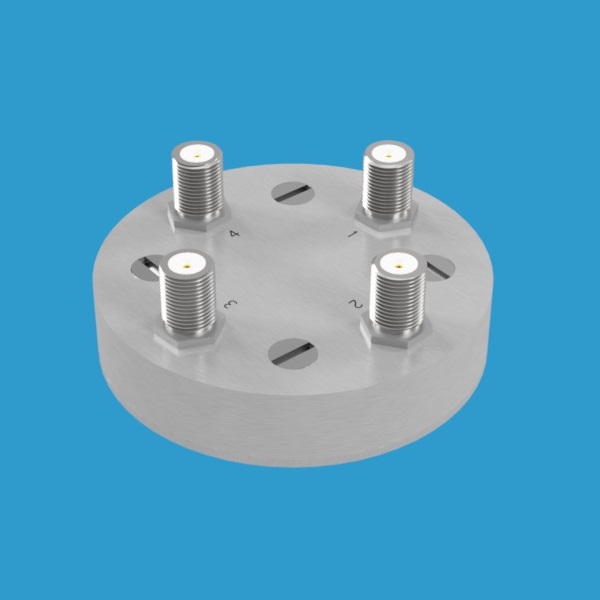

Model 75PD-167 is a 75 Ohm resistive 4 port (i.e. 3-Way) power divider/combiner designed for use in RF testing for MOCA devices. Unlike a standard resistive divider/combiner this 4 port model has 21.5dB of insertion loss required for MOCA testing. It operates DC-2150 MHz and is rated for 0.5 Watts of RF input power. It is constructed in a star configuration with built-in 6dB fixed pads. It has the functionality of a RF hub because every path through the divider/combiner has equal loss. It is available with 75 Ohm F female coaxial RF connectors.
