Description

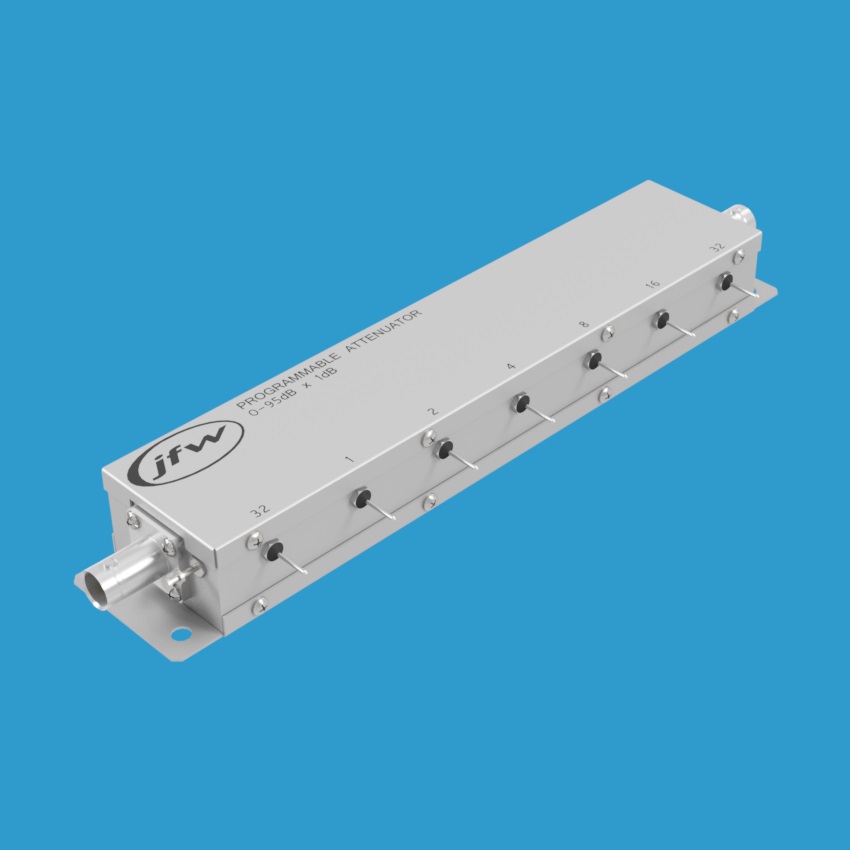

Model 75P-199 is a 75 Ohm relay programmable attenuator with attenuation range 0 to 95dB by 1dB steps. It operates DC-2150 MHz and is rated for 0.5 Watts of RF input power. This step attenuator is available with 75 Ohm F female coaxial RF connectors. The attenuator has seven individually controlled steps: 1dB, 2dB, 4dB, 8dB, 16dB, 32dB and 32dB.
+12Vdc Controlled
Each of the attenuation steps has a corresponding solder feedthru where the control Voltage is applied. Applying +12Vdc to a solder feedthru will turn on the attenuation for that step. The internal relays are failsafe to their thru path setting (i.e. failsafe to 0dB setting). An open circuit (or Ground) on a solder feedthru will turn off the attenuation for that step. Activate multiple steps simultaneously to set combinational attenuation values. For a 7dB setting, the 1dB/2dB/4dB control lines must active. For the 24dB setting, the 8dB/16dB control lines must be active. To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must off (i.e. Ground or Open Circuit).
