Additional information
Connector Type |
---|

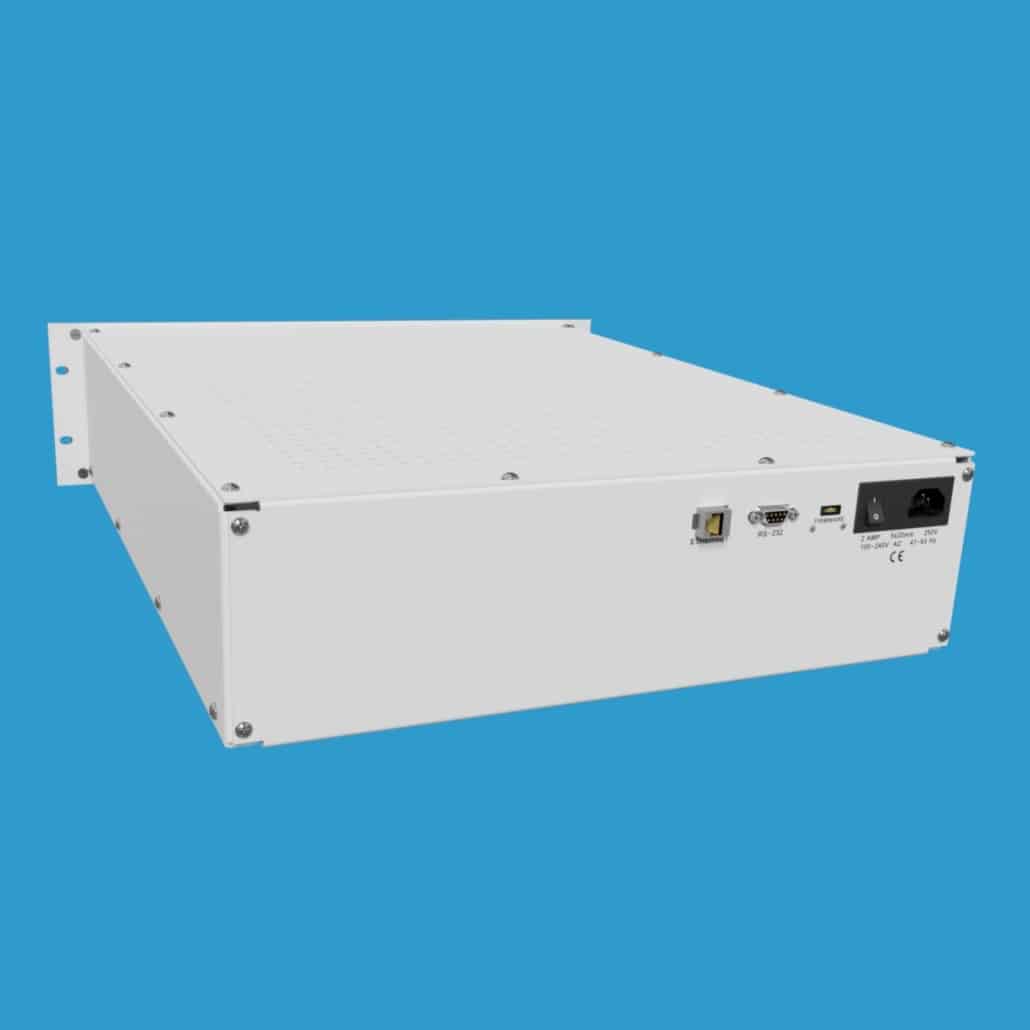

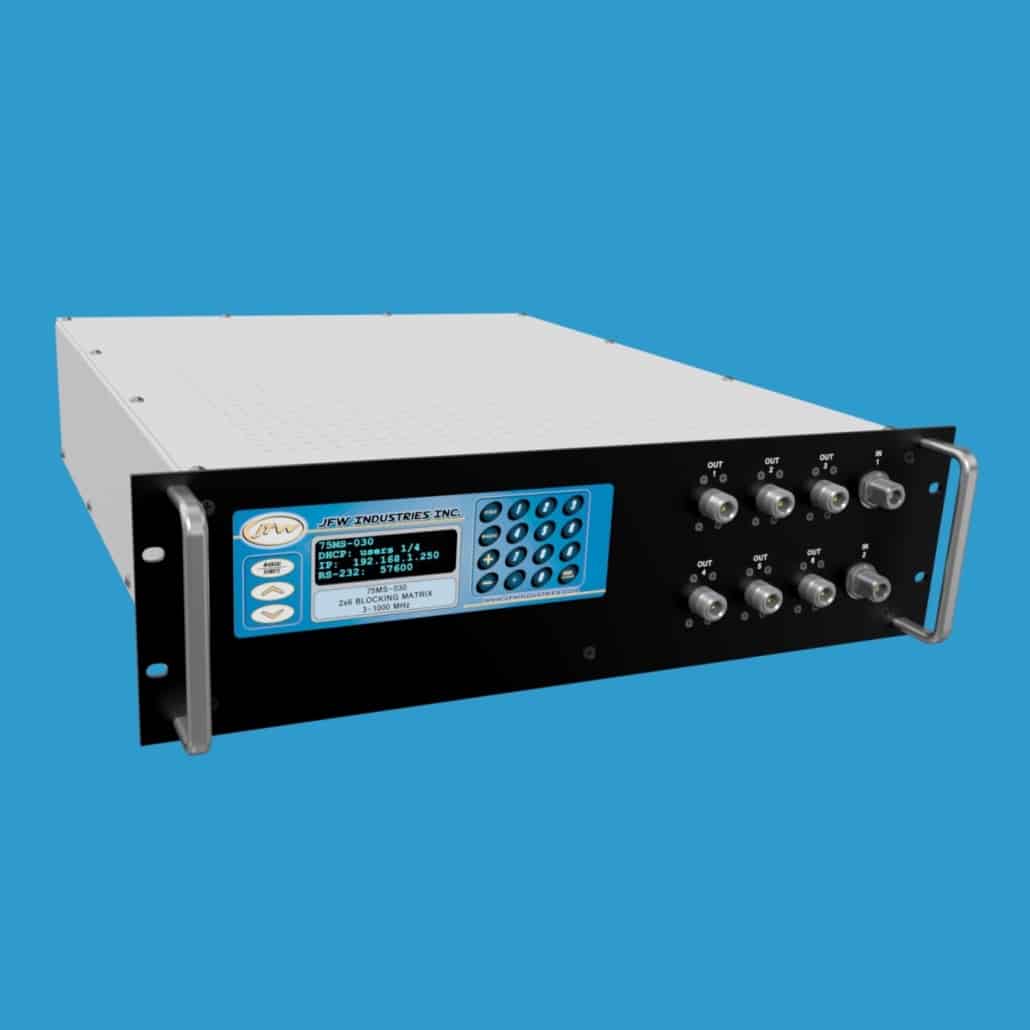

JFW Model #: 75MS-030
Impedance: 75 Ohm
Configuration: 2 x 6 Blocking Matrix Switch
Frequency Range: 3-1000 MHz
Switch Type: Solid-state
Unused Ports: IN Reflective, OUT Absorptive
RF Input Power: +13 dBm
RF Connectors: F, N
Documentation: Data Sheet | Drawing | Diagram
