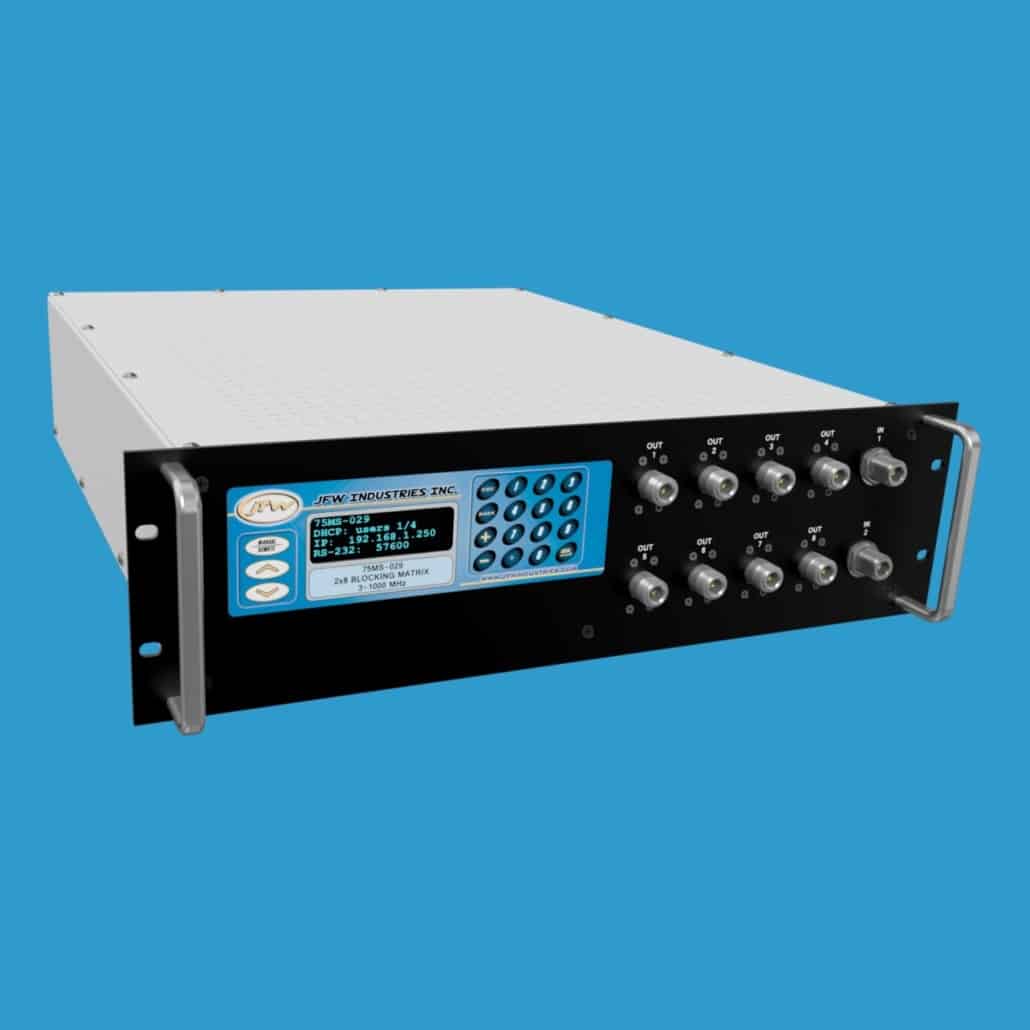

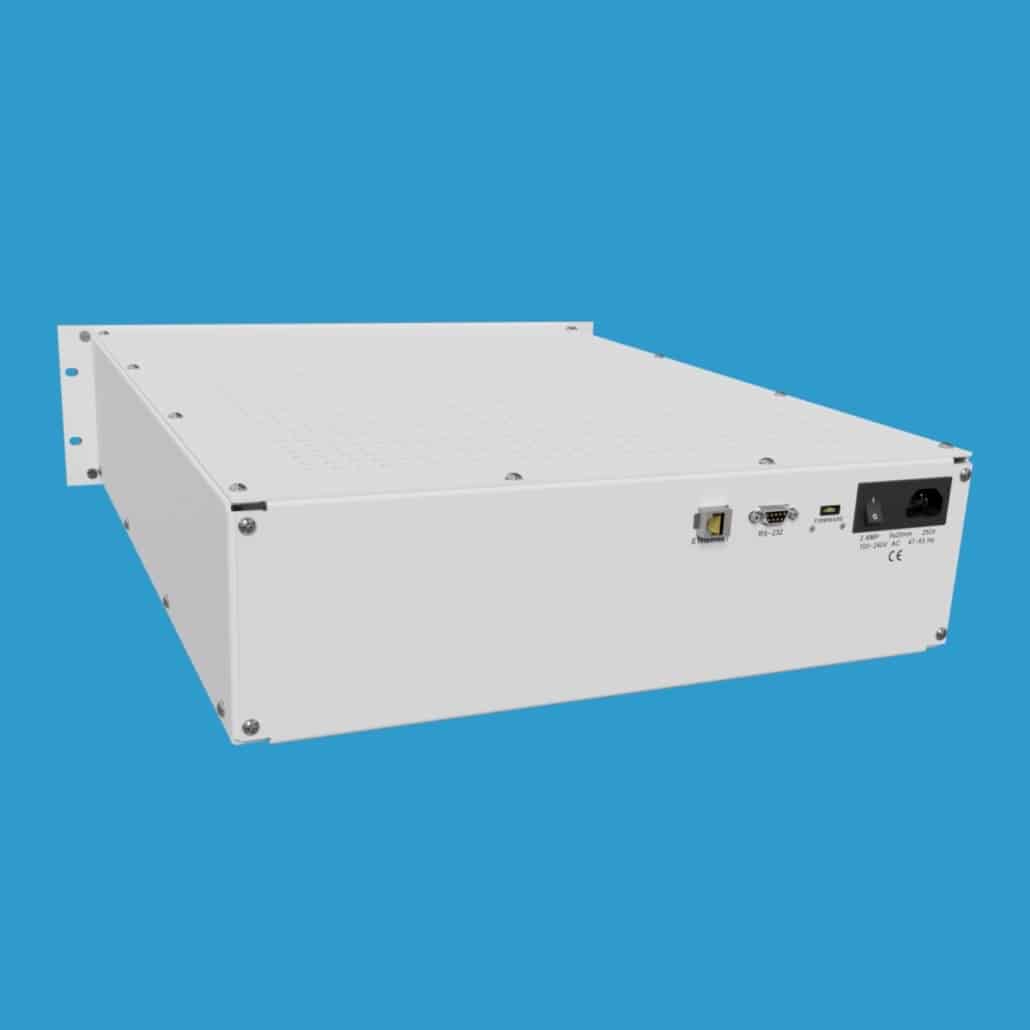

75MS-029 | 2×8 Blocking Matrix Switch

JFW Model #: 75MS-029
Impedance: 75 Ohm
Configuration: 2 x 8 Blocking Matrix Switch
Frequency Range: 3-1000 MHz
Switch Type: Solid-state
Unused Ports: IN Reflective, OUT Absorptive
RF Input Power: +13 dBm
RF Connectors: F, N
Documentation: Data Sheet | Drawing | Diagram
