Description

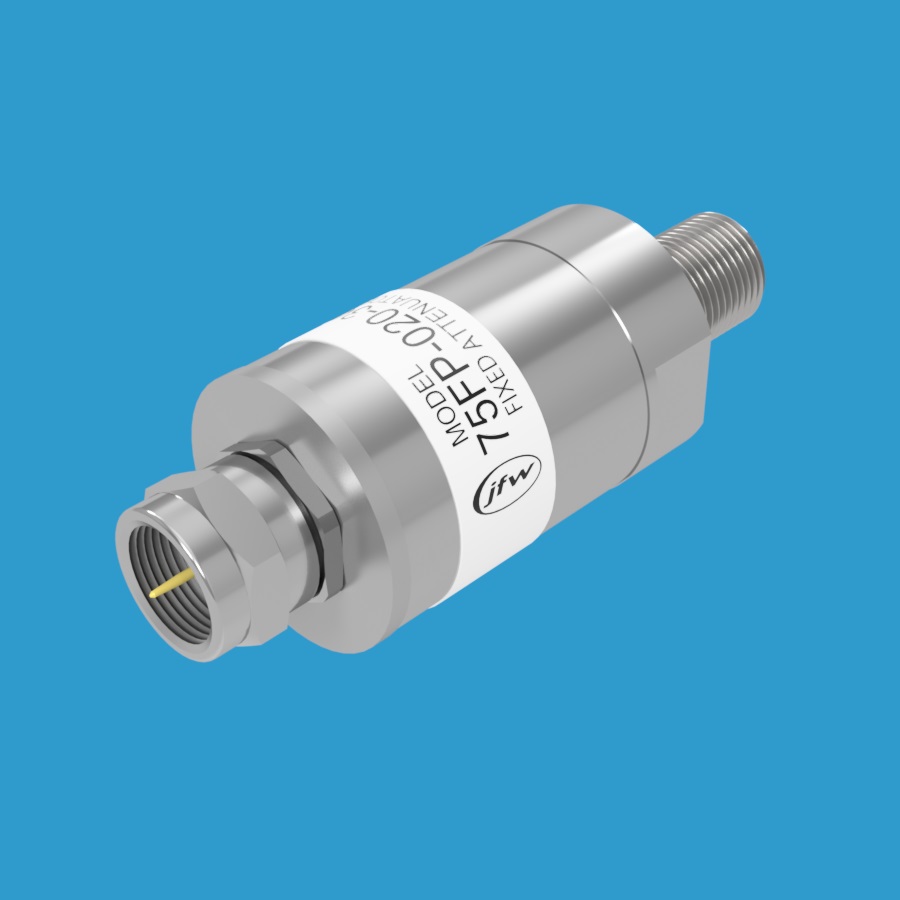

Model 75FP-xxx-3G is a 75 Ohm coaxial fixed attenuator rated at 0.5 Watts maximum RF input power that operates DC-3 GHz. Available dB values from 1dB to 30dB. The RF connectors can be BNC male/female, N male/female or F male/female.
For model 75FP-XXX-3G, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
75FP-001-3G BNC (1dB with BNC male/female)
75FP-002-3G BNC (2dB with BNC male/female)
75FP-003-3G BNC (3dB with BNC male/female)
75FP-004-3G BNC (4dB with BNC male/female)
75FP-005-3G BNC (5dB with BNC male/female)
75FP-006-3G BNC (6dB with BNC male/female)
75FP-007-3G BNC (7dB with BNC male/female)
75FP-008-3G BNC (8dB with BNC male/female)
75FP-009-3G BNC (9dB with BNC male/female)
75FP-010-3G BNC (10dB with BNC male/female)
75FP-011-3G F (11dB with F male/female)
75FP-012-3G F (12dB with F male/female)
75FP-013-3G F (13dB with F male/female)
75FP-014-3G F (14dB with F male/female)
75FP-015-3G F (15dB with F male/female)
75FP-016-3G F (16dB with F male/female)
75FP-017-3G F (17dB with F male/female)
75FP-018-3G F (18dB with F male/female)
75FP-019-3G F (19dB with F male/female)
75FP-020-3G F (20dB with F male/female)
75FP-021-3G N (21dB with N male/female)
75FP-022-3G N (22dB with N male/female)
75FP-023-3G N (23dB with N male/female)
75FP-024-3G N (24dB with N male/female)
75FP-025-3G N (25dB with N male/female)
75FP-026-3G N (26dB with N male/female)
75FP-027-3G N (27dB with N male/female)
75FP-028-3G N (28dB with N male/female)
75FP-029-3G N (29dB with N male/female)
75FP-030-3G N (30dB with N male/female)
