Description

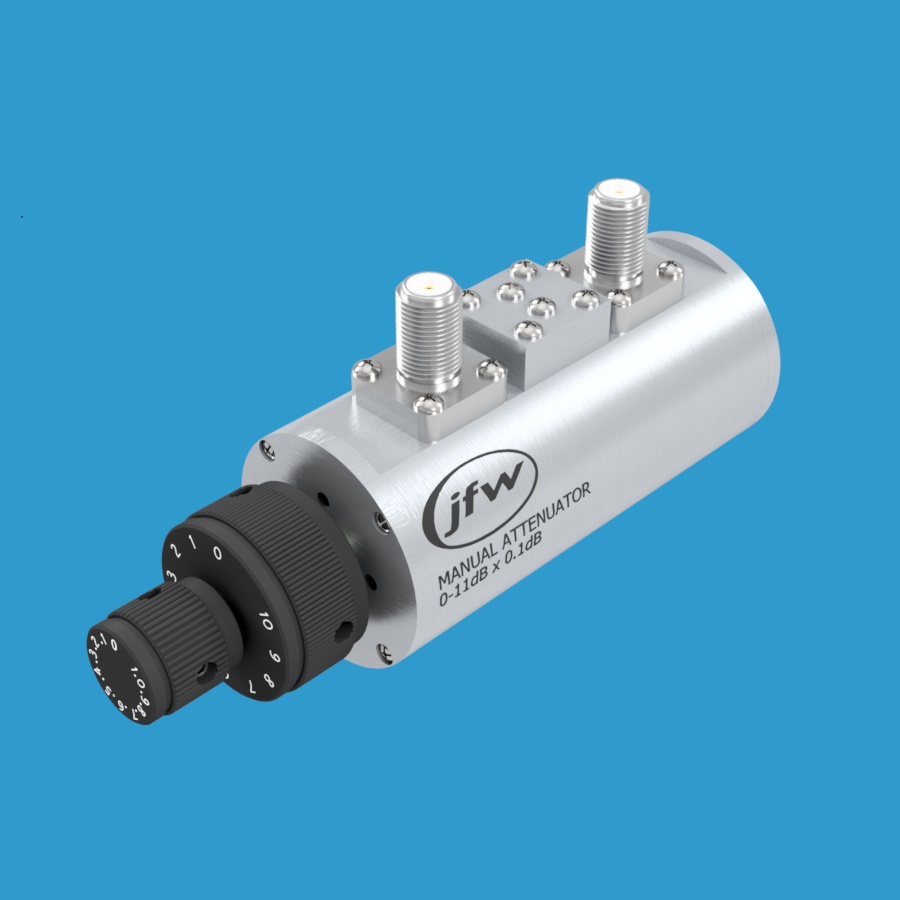

Model 75DR-022 is a 75 Ohm manual step attenuator with attenuation range 0 to 11dB by 0.1dB steps. It operates DC-1000 MHz and is rated for 1 Watt average RF power. It is a dual rotary attenuator (i.e. two manual knobs). The small knob is 0.1dB step. The large knob is 1dB step. It is available with 50 Ohm coaxial RF connectors: BNC female or F female. The attenuator has four mounting holes in the front plate to allow for panel mounting.
