Description

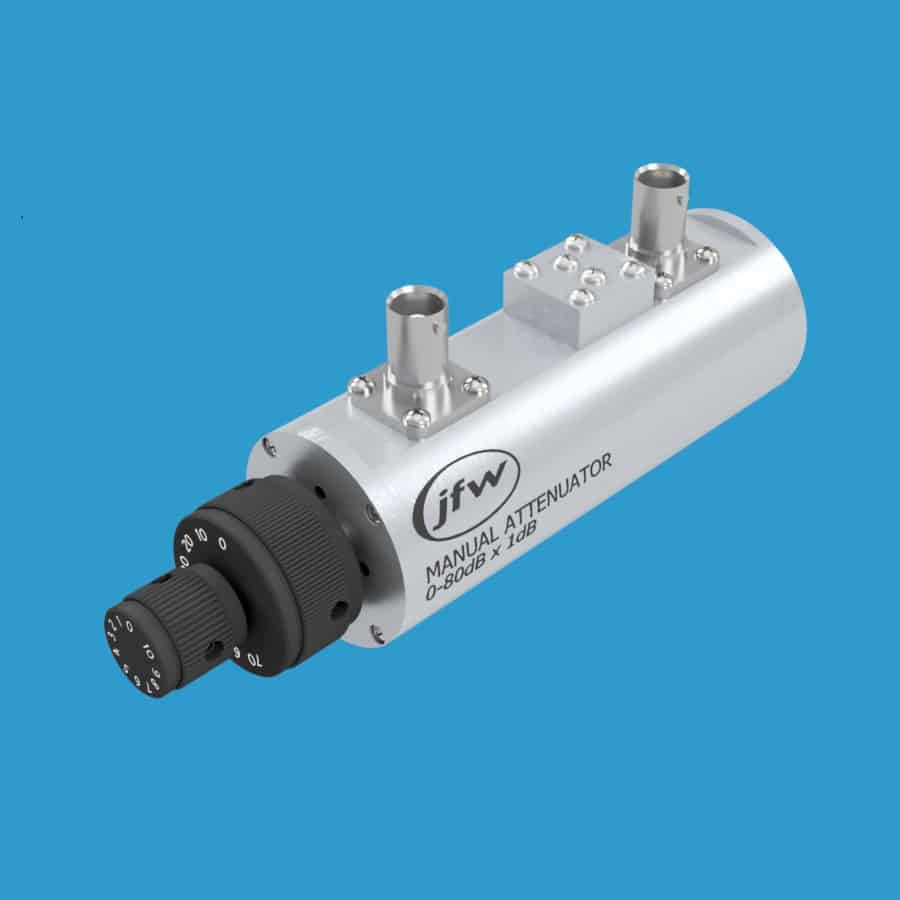

Model 75DR-006 is a 75 Ohm manual step attenuator with attenuation range 0 to 80dB by 1dB steps. It operates DC-600 MHz and is rated for 1 Watt average RF power. It is a dual rotary attenuator (i.e. two manual knobs). The small knob is 1dB step. The large knob is 10dB step. It is available with 50 Ohm coaxial RF connectors: BNC, F or N female. The attenuator has four mounting holes in the front plate to allow for panel mounting.
