Description

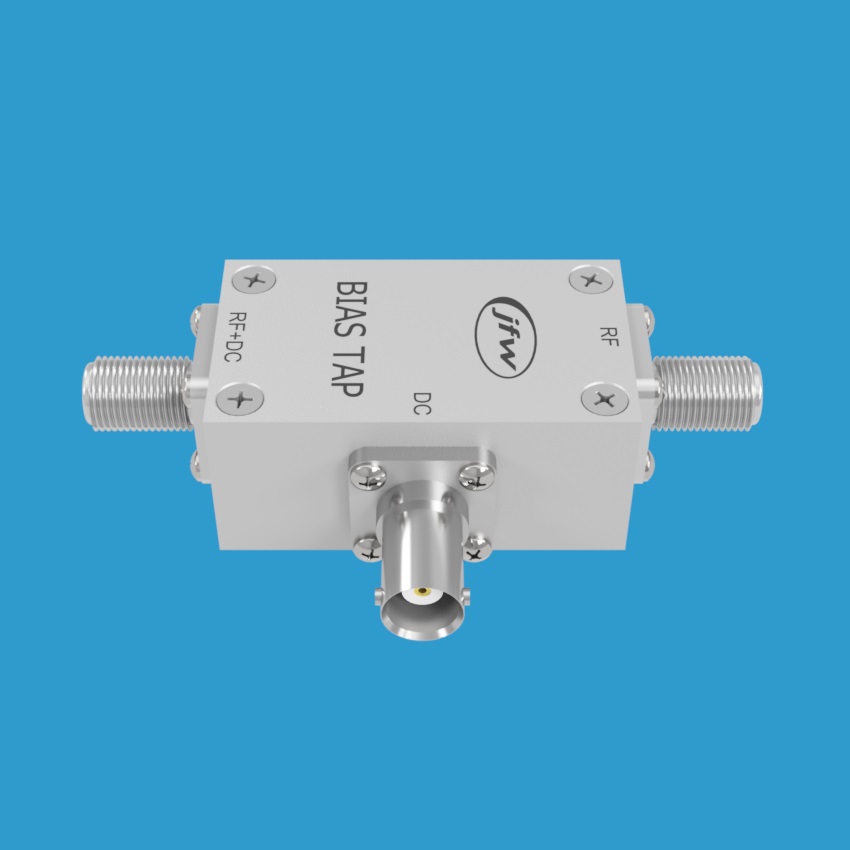

Model 75BT-026 is a 75 Ohm impedance bias tap. It can be used to inject or remove DC from a RF transmission line. The RF path is rated 5-2150MHz. The DC path is rated for up to 1 Amp of current and 50 Volts breakdown Voltage. The DC port uses a BNC female connector. The two RF ports can be selected to be BNC, F or N type RF connectors. There are four 4-40 tapped mounting holes located on the bottom of the enclosure.
