Description

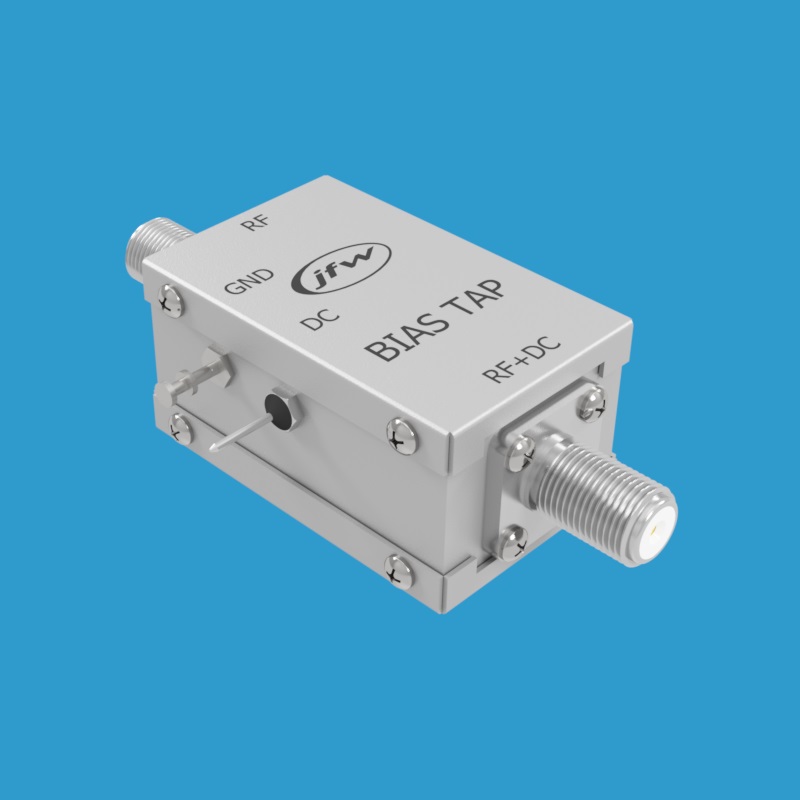

Model 75BT-032 is a 75 Ohm impedance bias tap. It can be used to inject or remove DC from a RF transmission line. The RF path is rated 1-3000MHz. The DC path is rated for up to 1 Amp of current and 50 Volts breakdown Voltage. The DC port uses a solder terminal type connector. The two RF ports can be selected to be F or N type RF connectors.
