JFW Model #: 57ZT
Impedance: 50 Ohm to 75 Ohm
Frequency Start: 0.5 MHz
Frequency Stop: 600 MHz
Attenuation Loss: 0.75 dB
50 Ohm End Connector: BNC, N, SMA, TNC
75 Ohm End Connector: BNC, F, N, TNC
Documentation: Data Sheet | Drawing (BNC)

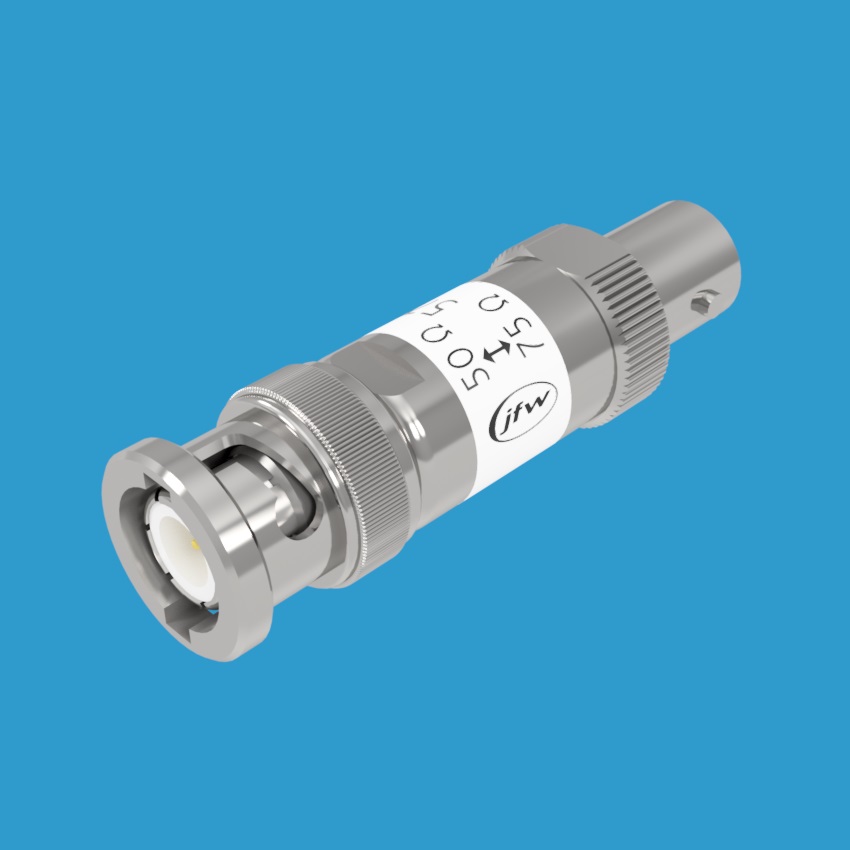

The 57ZT model impedance matching transformer is used to match a 50 Ohm system to a 75 Ohm system. It creates matching impedance using an internal toroid with windings that reactively transform the impedance. This model is available with the following RF connectors.
50 Ohm End Connector:Â BNC, N, SMA, TNC
75 Ohm End Connector:Â BNC, F, N, TNC
| Weight | N/A |
|---|---|
| 50 Ohm Connector | BNC Female, BNC Male, N Female, N Male, SMA Female, SMA Male, TNC Female, TNC Male |
| 75 Ohm Connector | BNC Female, BNC Male, F Female, F Male, N Female, N Male, TNC Female, TNC Male |
