JFW Model #: 57Z
Impedance: 50 Ohm to 75 Ohm
Frequency Range: DC-1000 MHz
Attenuation Loss: 5.7 dB +/- 0.5 dB
50 Ohm End Connector: BNC, N, SMA, TNC
75 Ohm End Connector: BNC, F, N, TNC
Documentation: Data Sheet | Drawing (BNC) | Drawing (N)

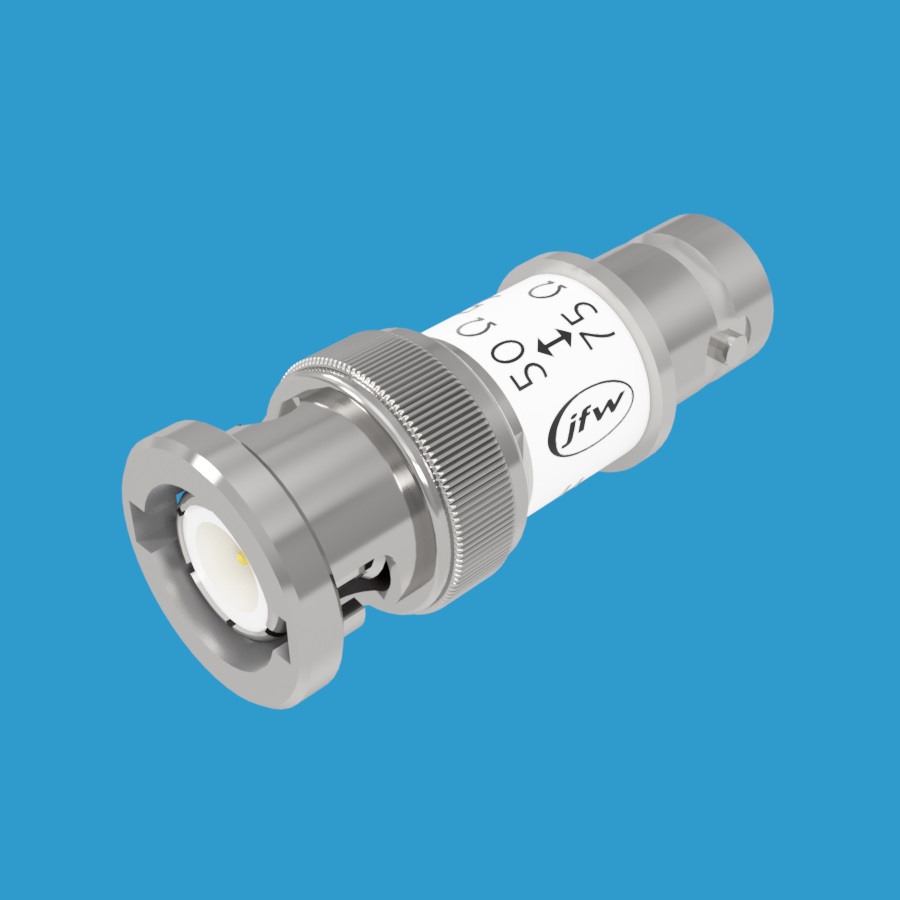

The 57Z model impedance matching pad is used to match a 50 Ohm system to a 75 Ohm system. It creates matching impedance using internal resistors. This model is available with the following RF connectors.
50 Ohm End Connector:Â BNC, N, SMA, TNC (male or female)
75 Ohm End Connector:Â BNC, F, N, TNC (male or female)
| Weight | N/A |
|---|---|
| 50 Ohm Connector | BNC Female, BNC Male, N Female, N Male, SMA Female, SMA Male, TNC Female, TNC Male |
| 75 Ohm Connector | BNC Female, BNC Male, F Female, F Male, N Female, N Male, TNC Female, TNC Male |
