Additional information
| 50 Ohm Connector | BNC Female, BNC Male, N Female, N Male, SMA Female, SMA Male, TNC Female, TNC Male |
|---|---|
| 75 Ohm Connector | BNC Female, BNC Male, F Female, F Male, N Female, N Male, TNC Female, TNC Male |

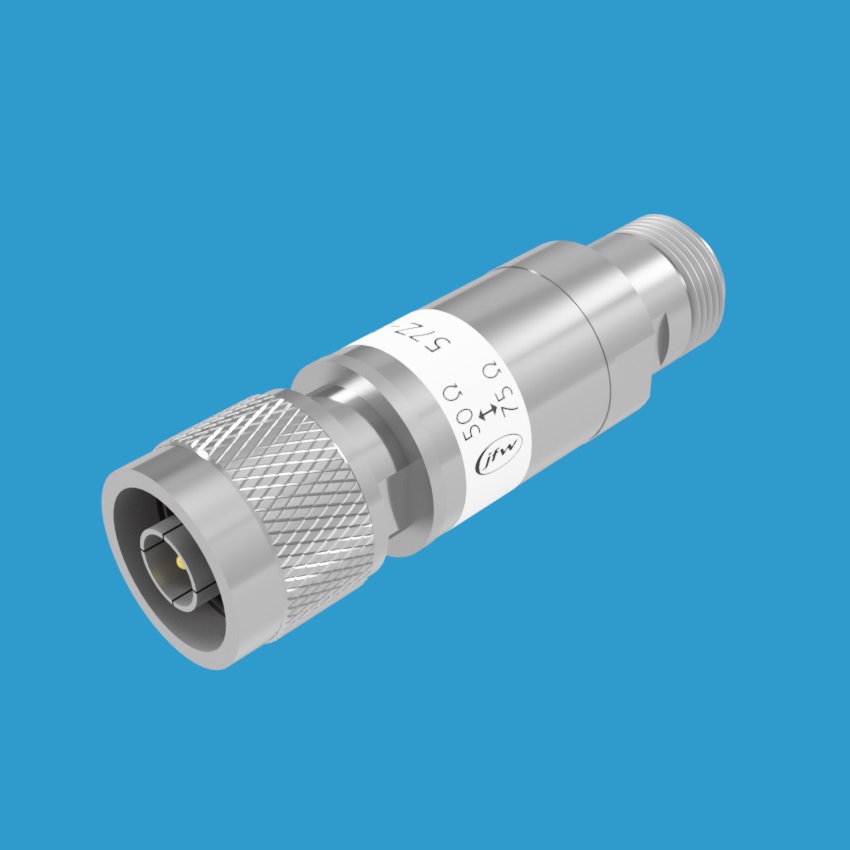

Impedance Matching Pad DC-3000 MHz | 57Z-3G
JFW Model #: 57Z-3G
Impedance: 50 Ohm to 75 Ohm
Frequency Range: DC-3000 MHz
Attenuation Loss: 5.7 dB +/- 0.5 dB
50 Ohm End Connector: BNC, N, SMA, TNC
75 Ohm End Connector: BNC, F, N, TNC
Documentation: Data Sheet | Drawing (BNC) | Drawing (N) | Drawing (SMA/BNC)
