Description

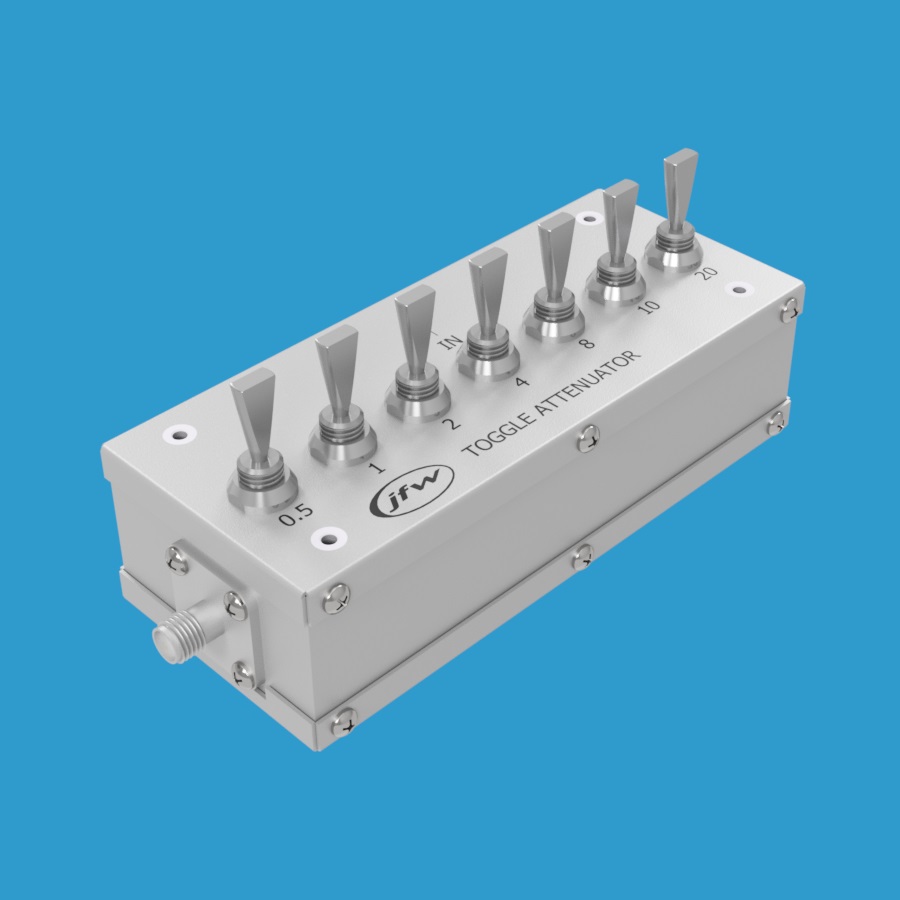

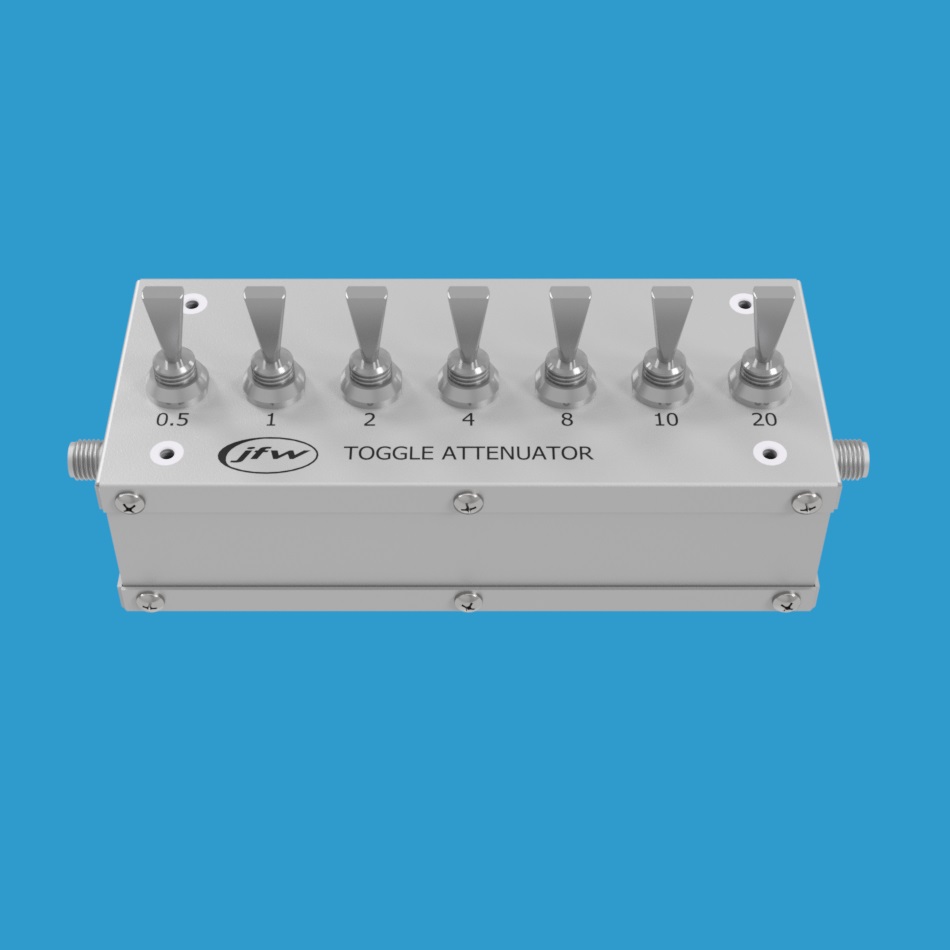

Model 50TA-007 is a 50 Ohm toggle switch attenuator with attenuation range 0 to 45.5dB by 0.5dB steps. It operates DC-850 MHz and is rated for 0.5 Watts average RF input power. Each toggle switch controls an attenuation step. This model has 7 toggles total: 0.5dB, 1dB, 2dB, 4dB, 8dB, 10dB and 20dB. Activate multiple toggles simultaneously to achieve combinational attenuation values. This manual attenuator is available with 50 Ohm coaxial RF connectors: BNC, N, SMA or TNC female. The attenuator has four mounting holes to allow for panel mounting.
