Description
Model 50T-585 is a 50 Ohm termination (aka dummy load) that operates DC-6 GHz and is rated at 5 Watts RF input power. It is available with N, SMA or TNC RF connectors as either male or female.

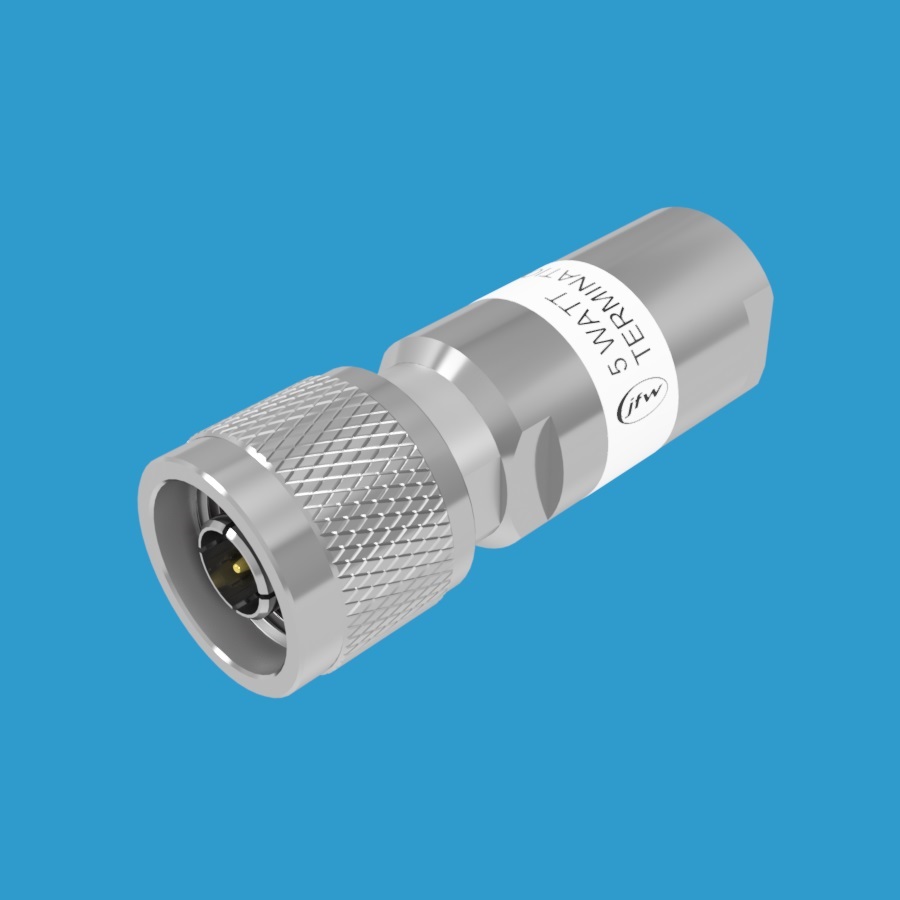

5 Watt Termination DC-6GHz | 50T-585
JFW Model #: 50T-585
Impedance: 50 Ohm
Frequency Range: DC-6 GHz
RF Input Power: 5 Watts
Heatsink Style: Round
RF Connectors: N, SMA, TNC
Documentation: Data Sheet | Drawing (N) | Drawing (SMA)
Additional information
| Weight | 0.18 lbs |
|---|---|
| Connector Type | N Female, N Male, SMA Female, SMA Male, TNC Female, TNC Male |
