Description

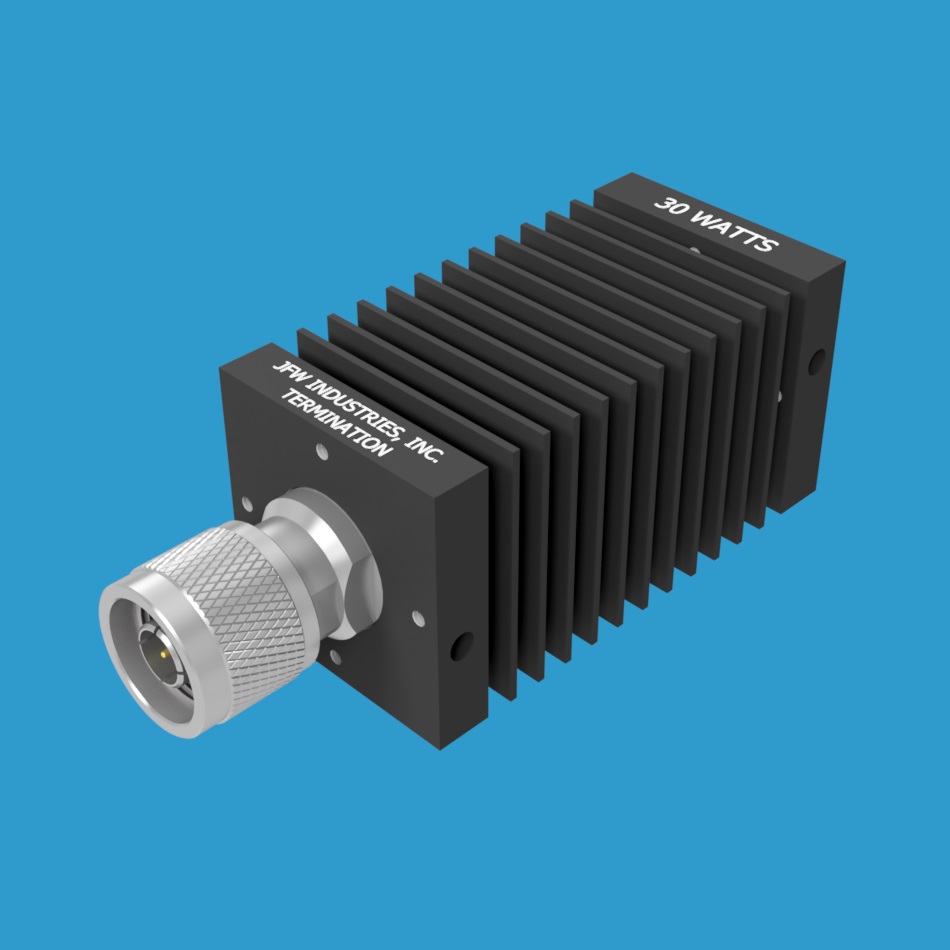

Model 50T-553-XXX can be ordered as a 50 Ohm termination or as a mismatch load. This model operates DC-1000 MHz and is rated at 30 Watts RF input power. It has threaded mounting holes on the front/rear/bottom sides of the heatsink. It is available with 50 Ohm RF connectors: BNC, N, SMA, TNC or 7/16 (male or female).
1.0:1 termination = 50 Ohm load in a 50 Ohm system
2.0:1 mismatch = 100 Ohm load in a 50 Ohm system
3.0:1 mismatch = 150 Ohm load in a 50 Ohm system
4.0:1 mismatch = 200 Ohm load in a 50 Ohm system
5.0:1 mismatch = 250 Ohm load in a 50 Ohm system
6.0:1 mismatch = 300 Ohm load in a 50 Ohm system
7.0:1 mismatch = 350 Ohm load in a 50 Ohm system
8.0:1 mismatch = 400 Ohm load in a 50 Ohm system
For model 50T-553-XXX, replace the XXX with the desired VSWR mismatch value and add the RF connector type at the end to create the full model number. Specify male (M) or female (F) for the RF connector.
Example Model Numbers:
50T-553-1.0 N M (1.0:1 termination)
50T-553-1.0 BNC M (1.0:1 termination)
50T-553-1.0 SMA M (1.0:1 termination)
50T-553-1.0 TNC M (1.0:1 termination)
50T-553-1.0 7/16 M (1.0:1 termination)
50T-553-1.1 BNC M (1.1:1 mismatch)
50T-553-1.2 BNC M (1.2:1 mismatch)
50T-553-1.3 BNC M (1.3:1 mismatch)
50T-553-1.4 BNC M (1.4:1 mismatch)
50T-553-1.5 BNC F (1.5:1 mismatch)
50T-553-1.6 BNC F (1.6:1 mismatch)
50T-553-1.7 BNC F (1.7:1 mismatch)
50T-553-1.8 BNC F (1.8:1 mismatch)
50T-553-1.9 BNC F (1.9:1 mismatch)
50T-553-2.0 N M (2.0:1 mismatch)
50T-553-2.1 N M (2.1:1 mismatch)
50T-553-2.2 N M (2.2:1 mismatch)
50T-553-2.3 N M (2.3:1 mismatch)
50T-553-2.4 N M (2.4:1 mismatch)
50T-553-2.5 N M (2.5:1 mismatch)
50T-553-2.6 N M (2.6:1 mismatch)
50T-553-2.7 N M (2.7:1 mismatch)
50T-553-2.8 N M (2.8:1 mismatch)
50T-553-2.9 N M (2.9:1 mismatch)
50T-553-3.0 N F (3.0:1 mismatch)
50T-553-3.1 N F (3.1:1 mismatch)
50T-553-3.2 N F (3.2:1 mismatch)
50T-553-3.3 N F (3.3:1 mismatch)
50T-553-3.4 N F (3.4:1 mismatch)
50T-553-3.5 N F (3.5:1 mismatch)
50T-553-3.6 N F (3.6:1 mismatch)
50T-553-3.7 N F (3.7:1 mismatch)
50T-553-3.8 N F (3.8:1 mismatch)
50T-553-3.9 N F (3.9:1 mismatch)
50T-553-4.0 SMA M (4.0:1 mismatch)
50T-553-4.1 SMA M (4.1:1 mismatch)
50T-553-4.2 SMA M (4.2:1 mismatch)
50T-553-4.3 SMA M (4.3:1 mismatch)
50T-553-4.4 SMA M (4.4:1 mismatch)
50T-553-4.5 SMA M (4.5.1 mismatch)
50T-553-4.6 SMA M (4.6:1 mismatch)
50T-553-4.7 SMA M (4.7:1 mismatch)
50T-553-4.8 SMA M (4.8:1 mismatch)
50T-553-4.9 SMA M (4.9:1 mismatch)
50T-553-5.0 SMA F (5.0:1 mismatch)
50T-553-5.1 SMA F (5.1:1 mismatch)
50T-553-5.2 SMA F (5.2:1 mismatch)
50T-553-5.3 SMA F (5.3:1 mismatch)
50T-553-5.4 SMA F (5.4:1 mismatch)
50T-553-5.5 SMA F (5.5.1 mismatch)
50T-553-5.6 SMA F (5.6:1 mismatch)
50T-553-5.7 SMA F (5.7:1 mismatch)
50T-553-5.8 SMA F (5.8:1 mismatch)
50T-553-5.9 SMA F (5.9:1 mismatch)
50T-553-6.0 TNC M (6.0:1 mismatch)
50T-553-6.1 TNC M (6.1:1 mismatch)
50T-553-6.2 TNC M (6.2:1 mismatch)
50T-553-6.3 TNC M (6.3:1 mismatch)
50T-553-6.4 TNC M (6.4:1 mismatch)
50T-553-6.5 TNC F (6.5.1 mismatch)
50T-553-6.6 TNC F (6.6:1 mismatch)
50T-553-6.7 TNC F (6.7:1 mismatch)
50T-553-6.8 TNC F (6.8:1 mismatch)
50T-553-6.9 TNC F (6.9:1 mismatch)
50T-553-7.0 7/16 M (7.0:1 mismatch)
50T-553-7.1 7/16 M (7.1:1 mismatch)
50T-553-7.2 7/16 M (7.2:1 mismatch)
50T-553-7.3 7/16 M (7.3:1 mismatch)
50T-553-7.4 7/16 M (7.4:1 mismatch)
50T-553-7.5 7/16 F (7.5.1 mismatch)
50T-553-7.6 7/16 F (7.6:1 mismatch)
50T-553-7.7 7/16 F (7.7:1 mismatch)
50T-553-7.8 7/16 F (7.8:1 mismatch)
50T-553-7.9 7/16 F (7.9:1 mismatch)
50T-553-8.0 7/16 F (8.0:1 mismatch)
