JFW Model #: 50T-552
Impedance: 50 Ohm
Frequency Range: DC-2000 MHz
RF Input Power: 50 Watts
Heatsink Style: Square
RF Connectors: 7/16, BNC, N, SMA, TNC
Documentation: Data Sheet | Drawing

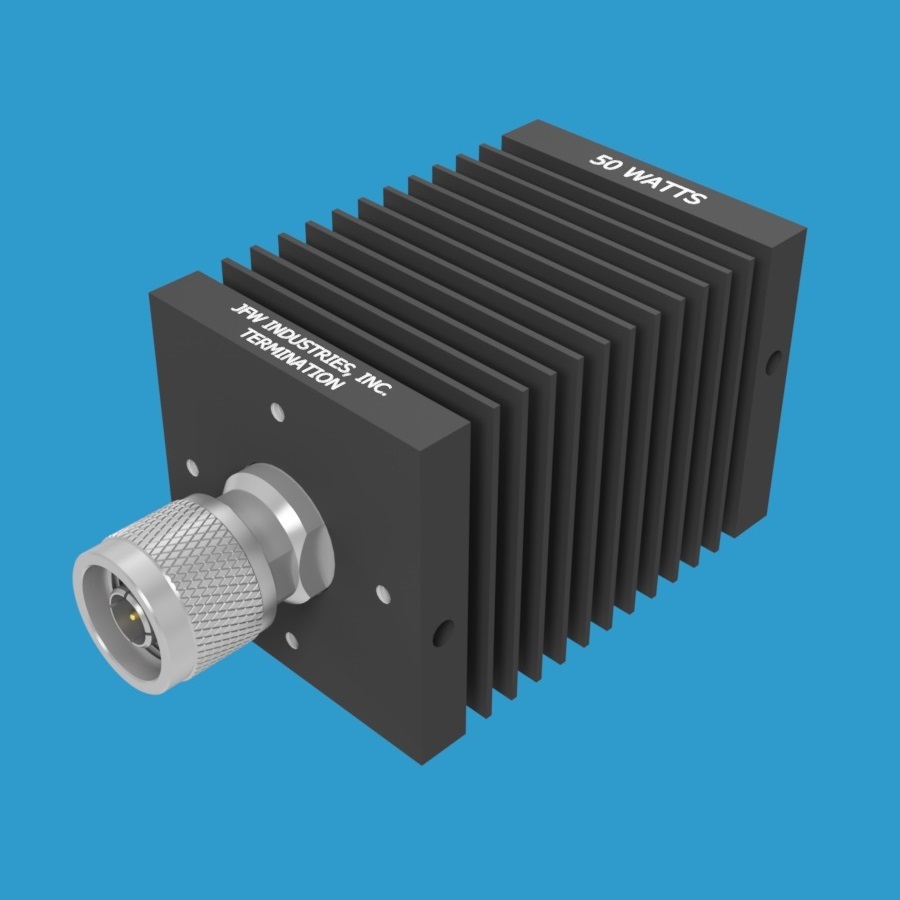

Model 50T-552 is a 50 Ohm termination (aka dummy load) rated at 50 Watts RF input power. The heatsink is square with mounting holes on the bottom side and both ends. The unit operates DC-2000 MHz and is available with BNC, N, SMA, TNC or 7/16 RF connectors as either male or female.
| Weight | 0.18 lbs |
|---|---|
| Connector Type | 7/16 Female, 7/16 Male, BNC Female, BNC Male, N Female, N Male, SMA Female, SMA Male, TNC Female, TNC Male |
