JFW Model #: 50T-533
Impedance: 50 Ohm
Frequency Range: DC-6 GHz
RF Input Power: 50 Watts
Heatsink Style: Square
RF Connectors: 4.3/10, 7/16, N, SMA
Documentation: Data Sheet | Drawing (7/16) | Drawing (N) | Drawing (SMA)

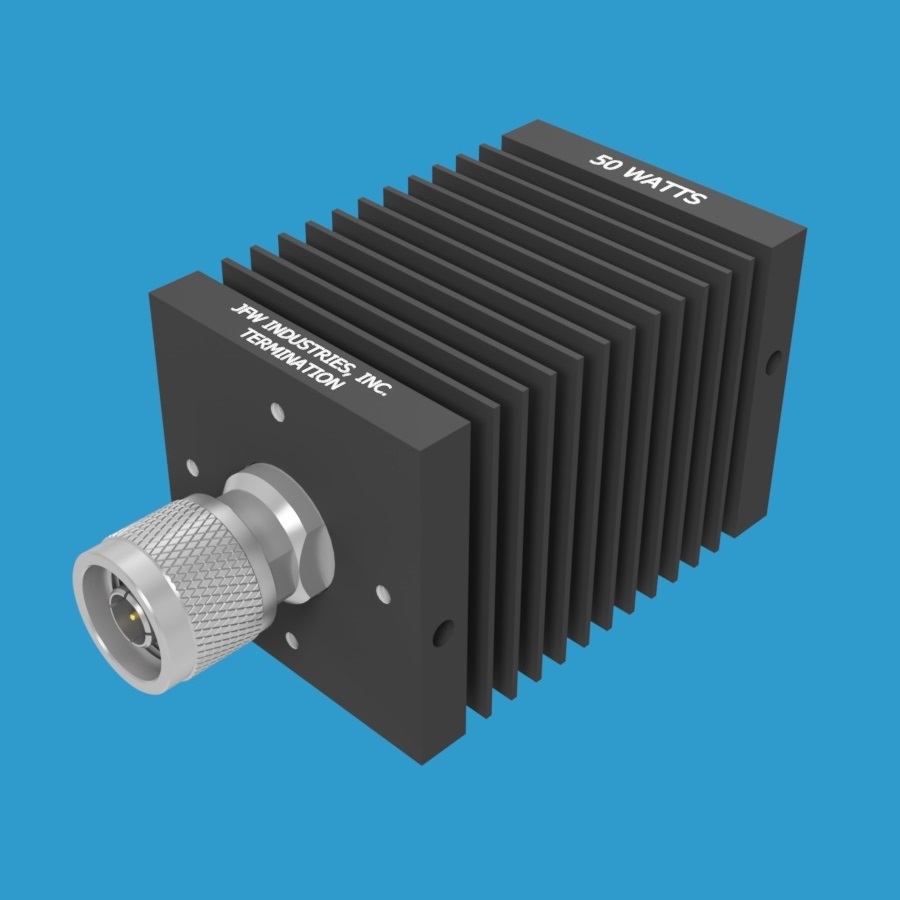

Model 50T-533 is a 50 Ohm termination (aka dummy load) rated at 50 Watts RF input power. The heatsink is square with mounting holes on the bottom side and both ends. The unit operates DC-6000 MHz and is available with N, SMA, 7/16 or 4.3/10 RF connectors as either male or female.
| Weight | 0.18 lbs |
|---|---|
| Connector Type | 4.3/10 Female, 4.3/10 Male, 7/16 Female, 7/16 Male, N Female, N Male, SMA Female, SMA Male |
