Description

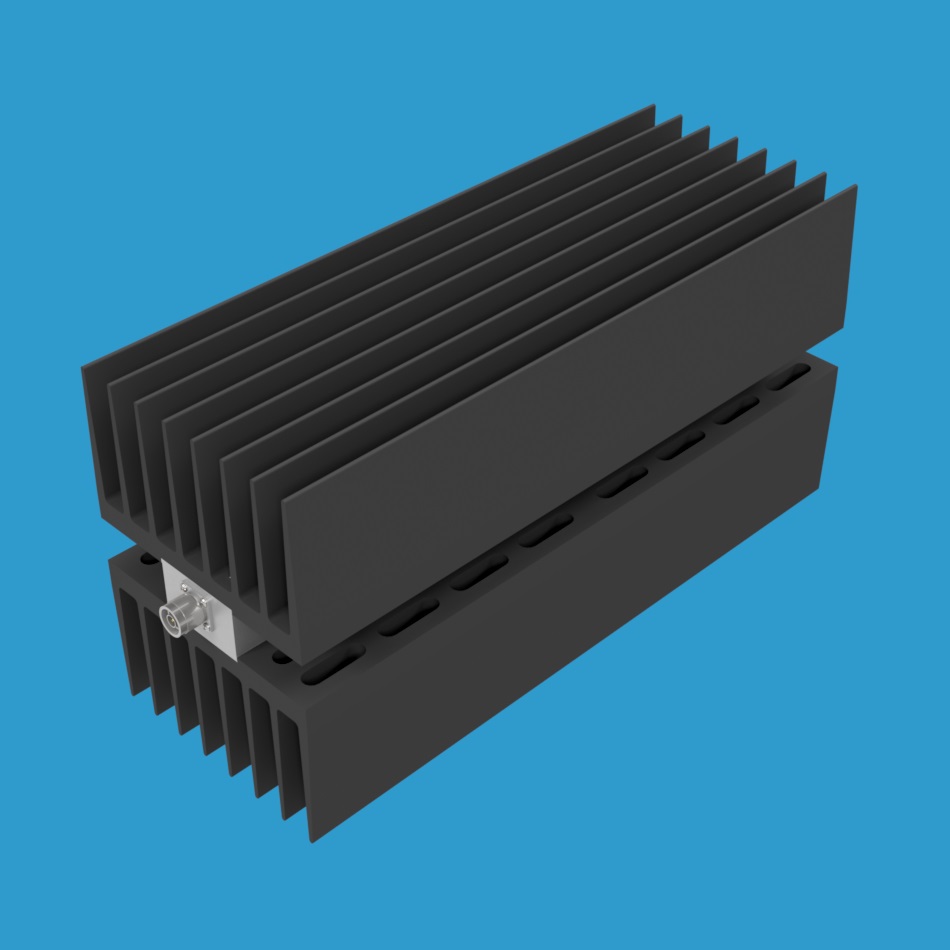

Model 50T-513 is a 50 Ohm termination (aka dummy load) rated at 1000 Watts RF input power and operates DC-300 MHz. It is available with N or 7/16 RF connectors as either male or female.
1000 Watt Termination DC-300MHz | 50T-513
JFW Model #: 50T-513
Impedance: 50 Ohm
Frequency Range: DC-300 MHz
RF Input Power: 1000 Watts
Heatsink Style: Square
RF Connectors: N, 7/16 male or female
Documentation: Data Sheet | Drawing (N) | Drawing (7/16)
Additional information
| Connector Type |
|---|
