Description

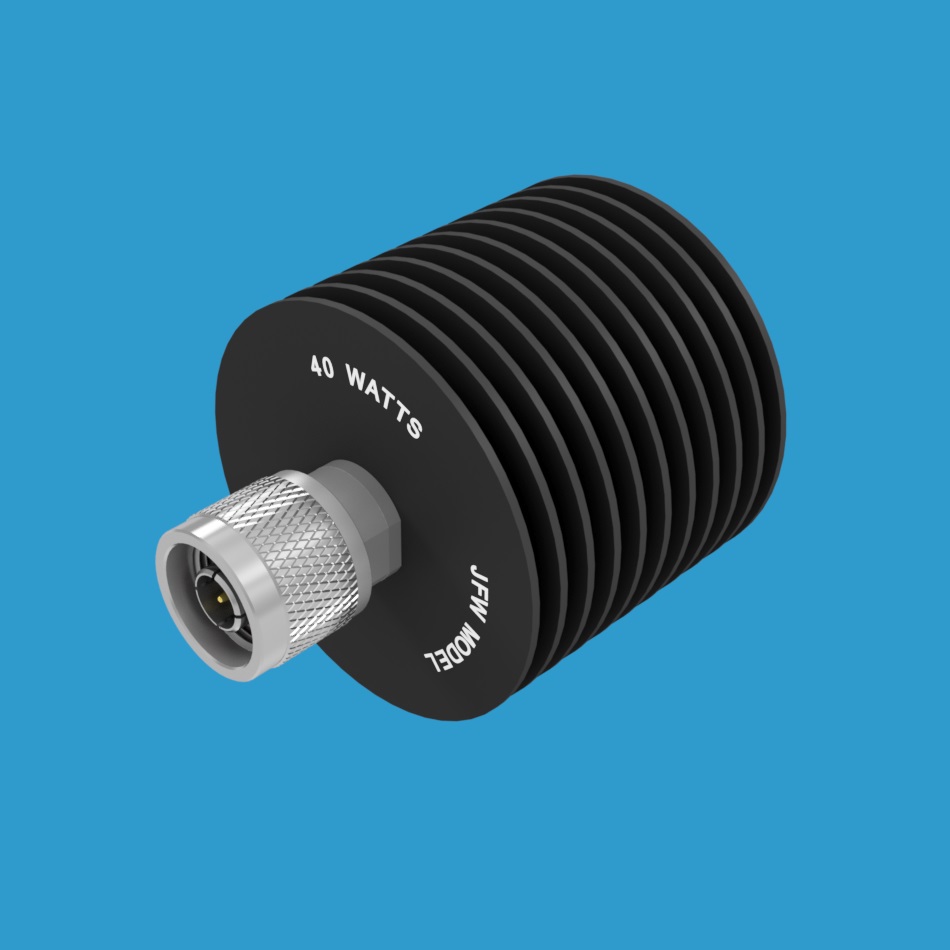

Model 50T-507-XXX can be ordered as a 50 Ohm termination or as a mismatch load. This model operates DC-3000 MHz and is rated at 40 Watts RF input power. It is available with 50 Ohm RF connectors: BNC, N, SMA, TNC, or 7/16 (male or female).
1.0:1 termination = 50 Ohm load in a 50 Ohm system
2.0:1 mismatch = 100 Ohm load in a 50 Ohm system
3.0:1 mismatch = 150 Ohm load in a 50 Ohm system
4.0:1 mismatch = 200 Ohm load in a 50 Ohm system
5.0:1 mismatch = 250 Ohm load in a 50 Ohm system
For model 50T-507-XXX, replace the XXX with the desired VSWR mismatch value and add the RF connector type at the end to create the full model number. Specify male (M) or female (F) for the RF connector.
Example Model Numbers:
50T-507-1.0 N M (1.0:1 termination)
50T-507-1.0 BNC M (1.0:1 termination)
50T-507-1.0 SMA M (1.0:1 termination)
50T-507-1.0 TNC M (1.0:1 termination)
50T-507-1.0 7/16 M (1.0:1 termination)
50T-507-1.1 BNC M (1.1:1 mismatch)
50T-507-1.2 BNC M (1.2:1 mismatch)
50T-507-1.3 BNC M (1.3:1 mismatch)
50T-507-1.4 BNC M (1.4:1 mismatch)
50T-507-1.5 BNC F (1.5:1 mismatch)
50T-507-1.6 BNC F (1.6:1 mismatch)
50T-507-1.7 BNC F (1.7:1 mismatch)
50T-507-1.8 BNC F (1.8:1 mismatch)
50T-507-1.9 BNC F (1.9:1 mismatch)
50T-507-2.0 N M (2.0:1 mismatch)
50T-507-2.1 N M (2.1:1 mismatch)
50T-507-2.2 N M (2.2:1 mismatch)
50T-507-2.3 N M (2.3:1 mismatch)
50T-507-2.4 N M (2.4:1 mismatch)
50T-507-2.5 N F (2.5:1 mismatch)
50T-507-2.6 N F (2.6:1 mismatch)
50T-507-2.7 N F (2.7:1 mismatch)
50T-507-2.8 N F (2.8:1 mismatch)
50T-507-2.9 N F (2.9:1 mismatch)
50T-507-3.0 SMA M (3.0:1 mismatch)
50T-507-3.1 SMA M (3.1:1 mismatch)
50T-507-3.2 SMA M (3.2:1 mismatch)
50T-507-3.3 SMA M (3.3:1 mismatch)
50T-507-3.4 SMA M (3.4:1 mismatch)
50T-507-3.5 SMA F (3.5:1 mismatch)
50T-507-3.6 SMA F (3.6:1 mismatch)
50T-507-3.7 SMA F (3.7:1 mismatch)
50T-507-3.8 SMA F (3.8:1 mismatch)
50T-507-3.9 SMA F (3.9:1 mismatch)
50T-507-4.0 TNC M (4.0:1 mismatch)
50T-507-4.1 TNC M (4.1:1 mismatch)
50T-507-4.2 TNC M (4.2:1 mismatch)
50T-507-4.3 TNC F (4.3:1 mismatch)
50T-507-4.4 TNC F (4.4:1 mismatch)
50T-507-4.5 7/16 M (4.5.1 mismatch)
50T-507-4.6 7/16 M (4.6:1 mismatch)
50T-507-4.7 7/16 M (4.7:1 mismatch)
50T-507-4.8 7/16 F (4.8:1 mismatch)
50T-507-4.9 7/16 F (4.9:1 mismatch)
50T-507-5.0 7/16 F (5.0:1 mismatch)
