Description

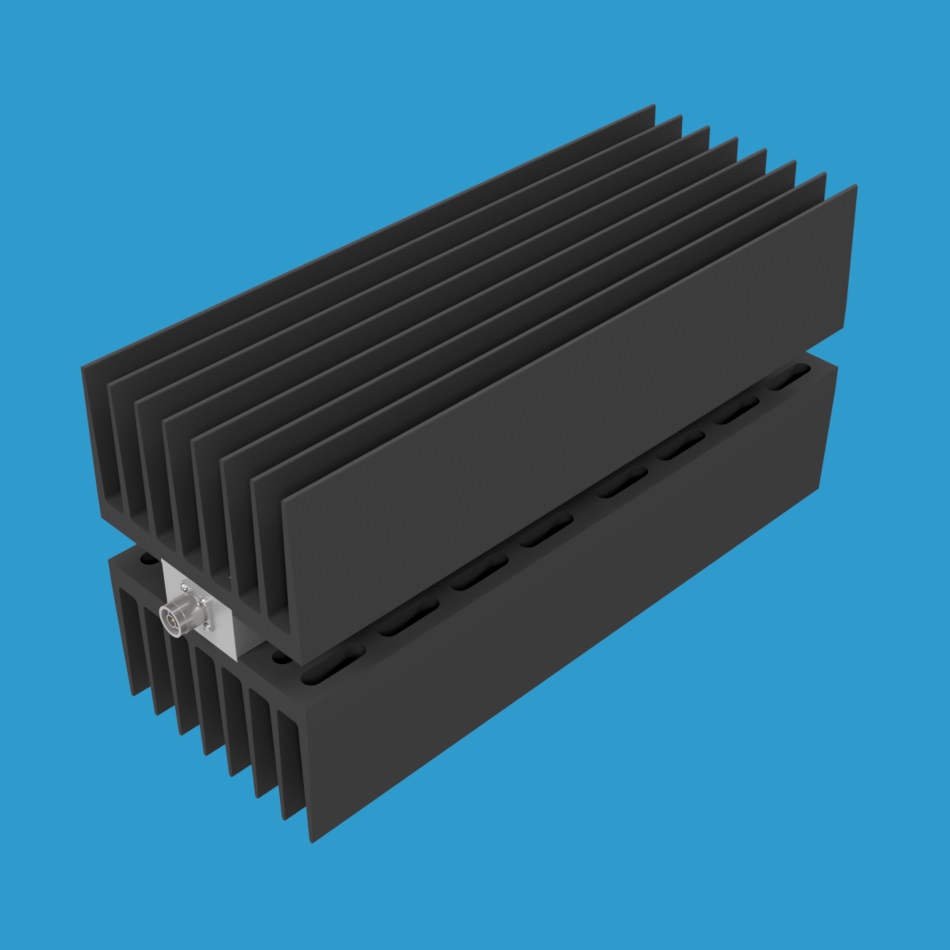

Model 50T-495 is a 50 Ohm termination (aka dummy load) rated at 1000 Watts RF input power and operates DC-3000 MHz. It is available with N or 7/16 RF connectors as either male or female.
1000 Watt Termination DC-3GHz | 50T-495
JFW Model #: 50T-495
Impedance: 50 Ohm
Frequency Range: DC-3000 MHz
RF Input Power: 1000 Watts
Heatsink Style: Square
RF Connectors: N, 7/16 male or female
Documentation: Data Sheet | Drawing (N) | Drawing (7/16)
Additional information
