Description

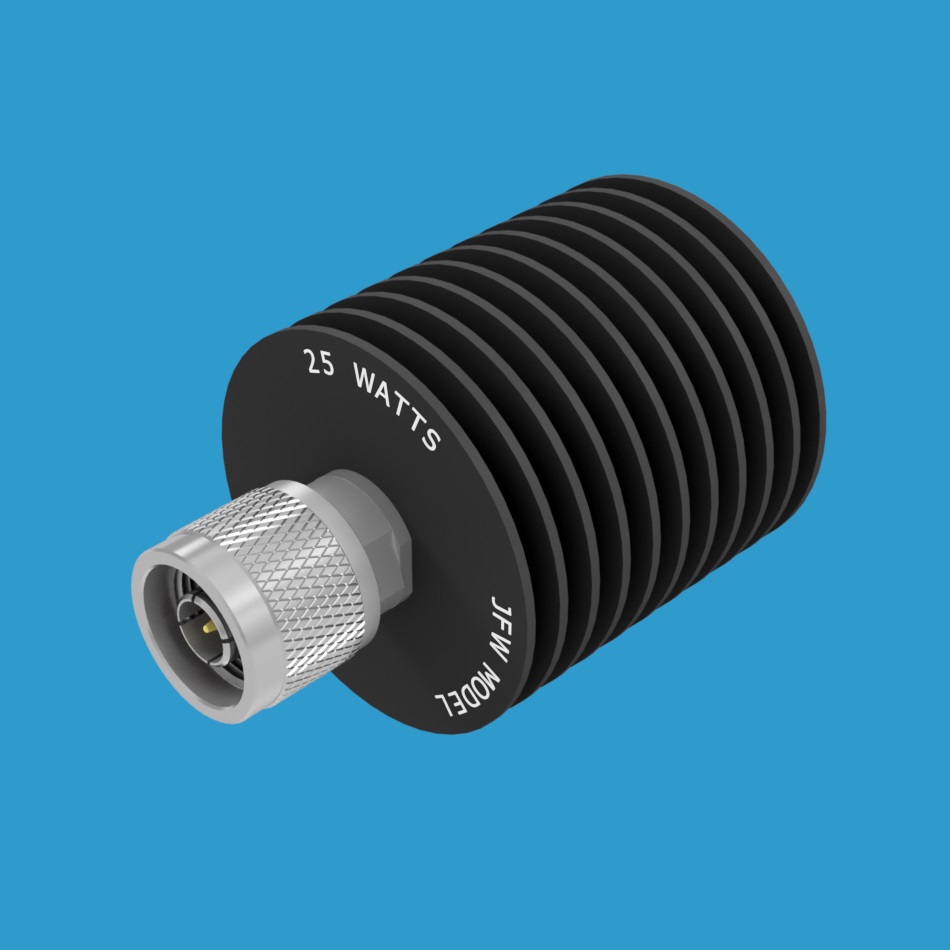

Model 50T-481 is a 50 Ohm termination (aka dummy load) that operates DC-6 GHz and is rated at 25 Watts RF input power. It is available with N, SMA, TNC, 4.1/9.5, 4.3/10 or 7/16 RF connectors as either male or female.
JFW Model #: 50T-481
Impedance: 50 Ohm
Frequency Range: DC-6 GHz
RF Input Power: 25 Watts
Heatsink Style: Round
RF Connectors: 4.1/9.5, 4.3/10, 7/16, N, SMA, TNC
Documentation: Data Sheet | Drawing
If Connector Type is Other, please specify in REMARKS field of the Request a Quote form.
Model 50T-481 is a 50 Ohm termination (aka dummy load) that operates DC-6 GHz and is rated at 25 Watts RF input power. It is available with N, SMA, TNC, 4.1/9.5, 4.3/10 or 7/16 RF connectors as either male or female.
Weight | 0.18 lbs |
---|---|
Connector Type | 4.1/9.5 Female, 4.1/9.5 Male, 4.3/10 Female, 4.3/10 Male, N Female, N Male, Other, SMA Female, SMA Male, TNC Female, TNC Male |
