Description

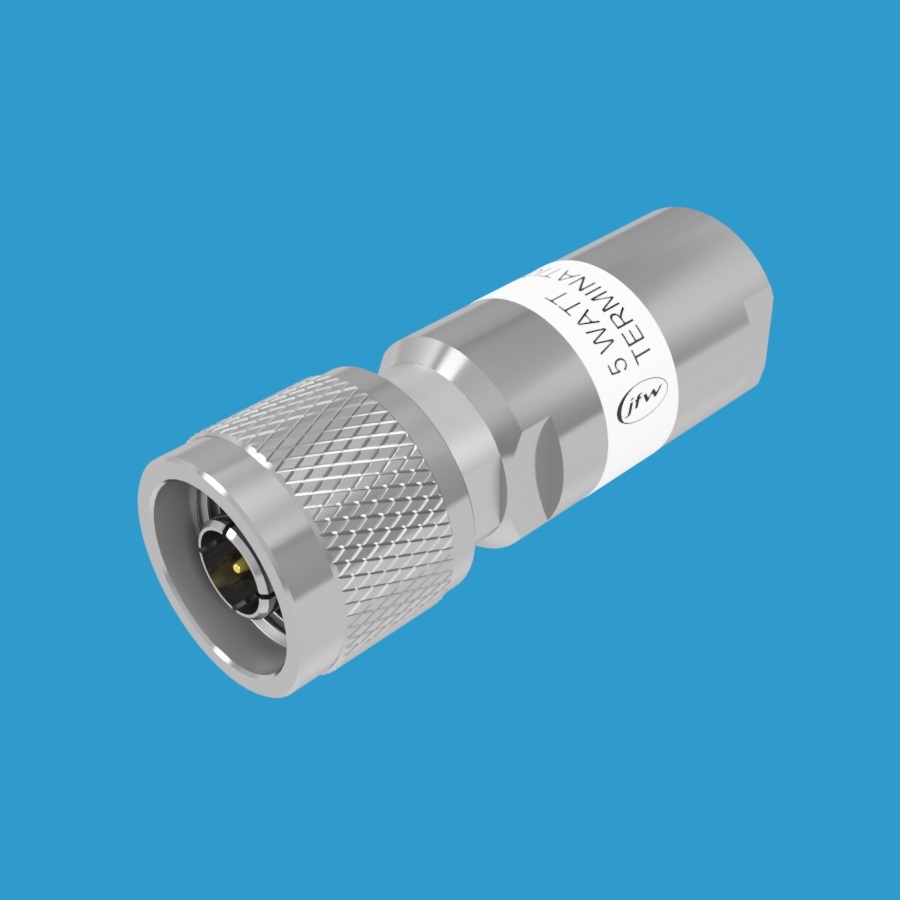

Model 50T-474 is a 50 Ohm termination (aka dummy load) that operates DC-2000 MHz and is rated at 5 Watts RF input power. It is available with BNC, N, SMA, TNC, and RP-TNC RF connectors as either male or female.
5 Watt Termination DC-2GHz | 50T-474
JFW Model #: 50T-474
Impedance: 50 Ohm
Frequency Range: DC-2000 MHz
RF Input Power: 5 Watts
Heatsink Style: Round
RF Connectors: BNC, N, RP-TNC, SMA, TNC
Documentation: Data Sheet | Drawing (BNC) | Drawing (N) | Drawing (SMA)
Additional information
| Weight | 0.18 lbs |
|---|---|
| Connector Type | BNC Female, BNC Male, N Female, N Male, RP-TNC Female, RP-TNC Male, SMA Female, SMA Male, TNC Female, TNC Male |
