JFW Model #: 50T-421
Impedance: 50 Ohm
Frequency Range: DC-3000 MHz
RF Input Power: 500 Watts
Heatsink Style: Square
RF Connectors: N, TNC, 7/16 or 4.3-10.0
Documentation: Data Sheet | Drawing

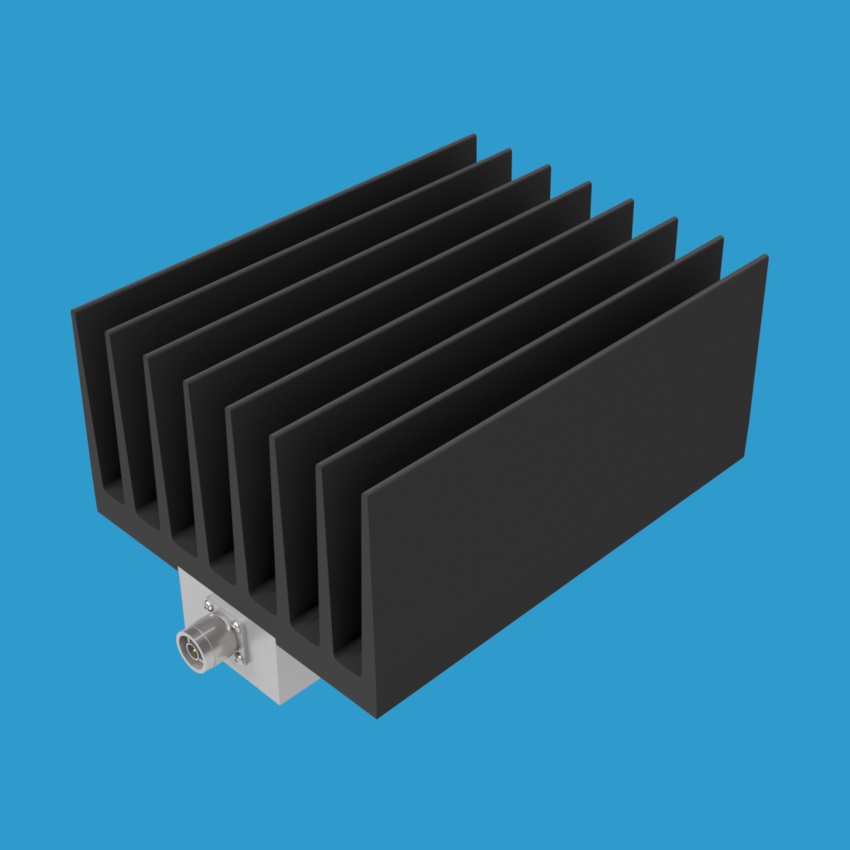

Model 50T-421 is a 50 Ohm termination (aka dummy load) rated at 500 Watts RF input power and operates DC-3000 MHz. It is available with N, TNC, 7/16 or 4.3-10 RF connectors as either male or female. This termination can be mounted in any position except with the mounting surface up (i.e. heatsink fins pointed down).
| Connector Type | 4.3/10 Female, 4.3/10 Male, 7/16 Female, 7/16 Male, N Female, N Male, TNC Female, TNC Male |
|---|
