Description

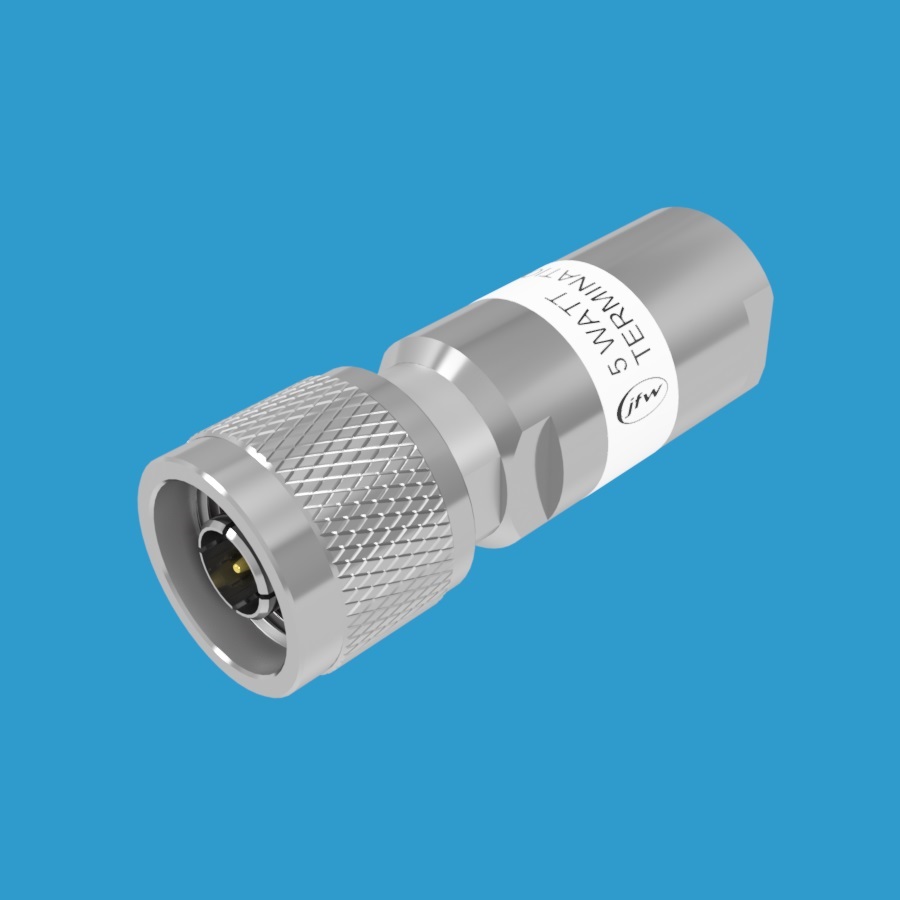

Model 50T-410 is a 50 Ohm termination (aka dummy load) that operates DC-4 GHz and is rated at 5 Watts RF input power. It is available with BNC, N, SMA, TNC, RP-TNC, 4.1/9.5, 4.3/10 or 7/16 RF connectors as either male or female.
5 Watt Termination DC-4GHz | 50T-410
JFW Model #: 50T-410
Impedance: 50 Ohm
Frequency Range: DC-4 GHz
RF Input Power: 5 Watts
Heatsink Style: Round
RF Connectors: 4.1-9.5, 4.3-10, 7/16, BNC, N, RP-TNC, SMA, or TNC
Documentation: Data Sheet | Drawing (SMA) | Drawing (BNC) | Drawing (N)
Additional information
| Weight | 0.18 lbs |
|---|---|
| Connector Type | 4.1/9.5 Female, 4.1/9.5 Male, 4.3/10 Female, 4.3/10 Male, 7/16 Female, 7/16 Male, BNC Female, BNC Male, N Female, N Male, RP-TNC Female, RP-TNC Male, SMA Female, SMA Male, TNC Female, TNC Male |
