JFW Model #: 50T-243
Impedance: 50 Ohm
Frequency Range: DC-3000 MHz
RF Input Power: 100 Watts
Heatsink Style: Square
RF Connectors: BNC, N, SMA, TNC, 7/16 female or male
Documentation: Data Sheet | Drawing

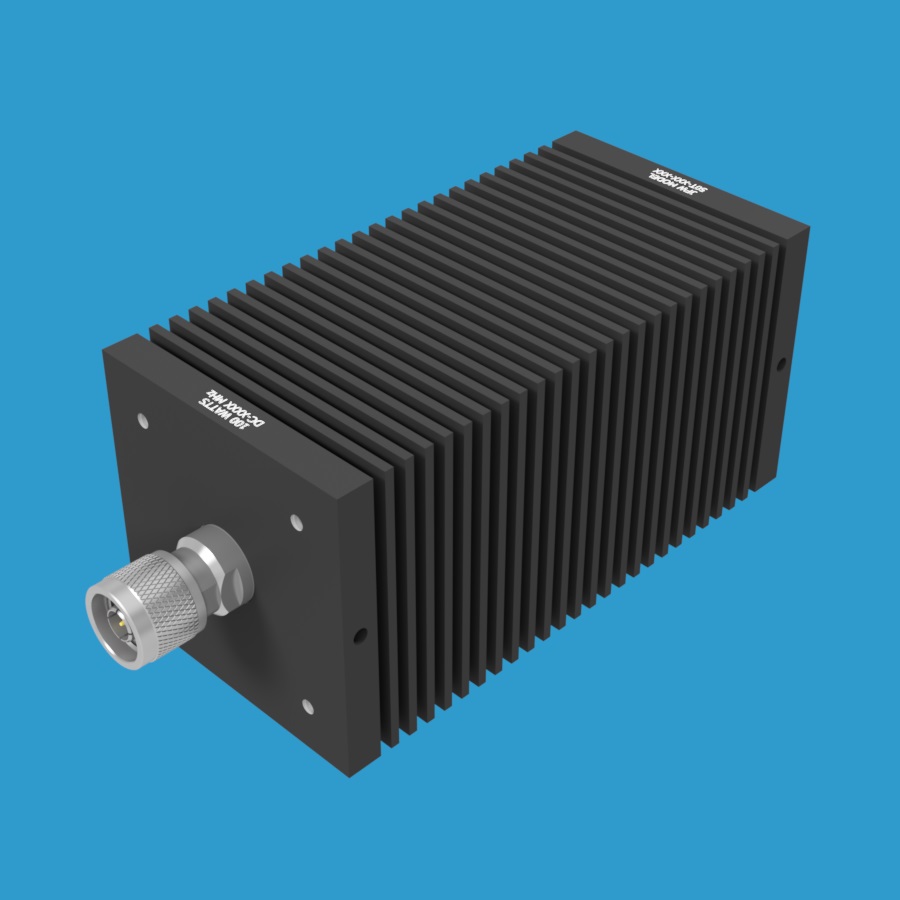

Model 50T-243 is a 50 Ohm termination (aka dummy load) rated at 100 Watts RF input power. The heatsink is square with mounting holes on the bottom side and both ends. The unit operates DC-3000 MHz and is available with BNC, N, SMA, TNC or 7/16 RF connectors as either male or female.
| Connector Type | 7/16 Female, 7/16 Male, BNC Female, BNC Male, N Female, N Male, SMA Female, SMA Male, TNC Female, TNC Male |
|---|
