Description
Model 50T-142 is a 50 Ohm termination (aka dummy load) with a N male RF connector. It operates DC-8 GHz and is rated at 2 Watts RF input power. This model can be ordered with or without a bead chain.
JFW Model #: 50T-142
Impedance: 50 Ohm
Frequency Range: DC-8 GHz
RF Input Power: 2 Watts
RF Connectors: N male (Optional Bead Chain)

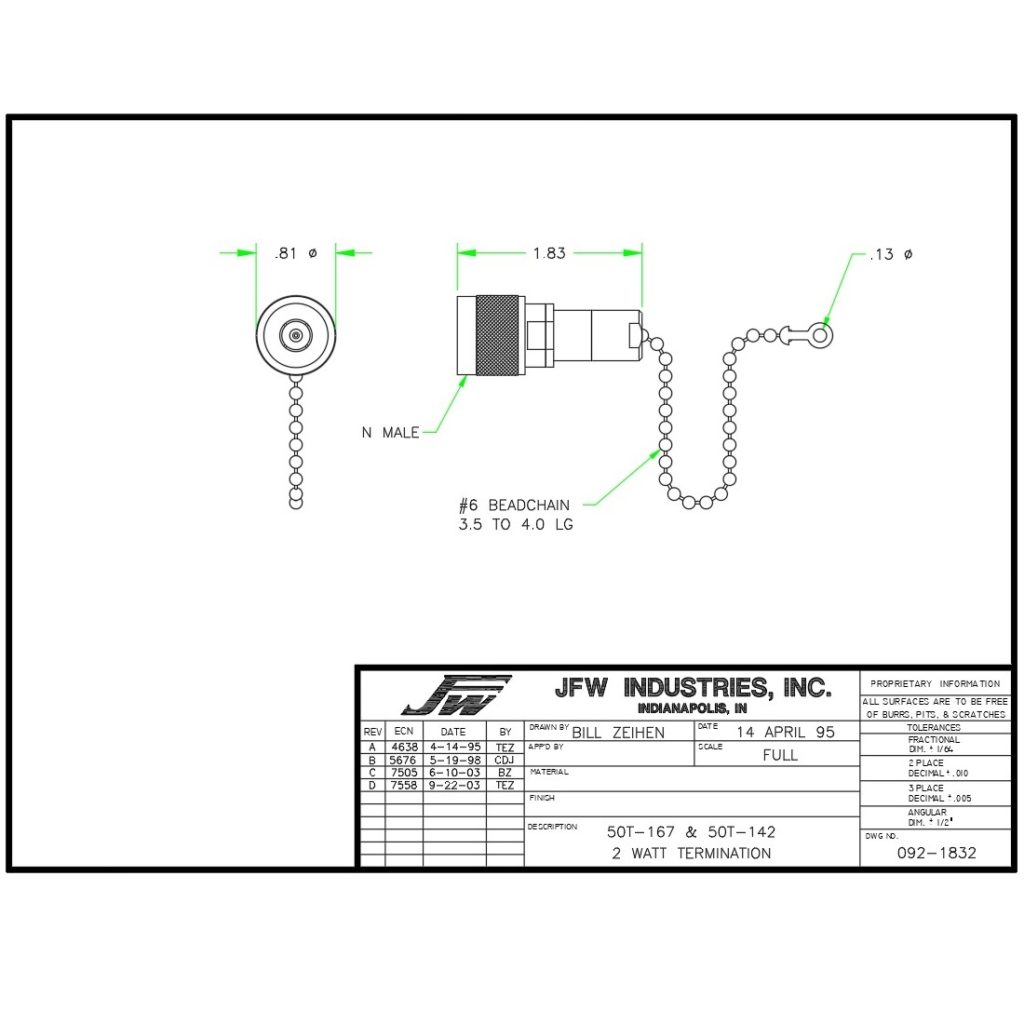

Documentation: Data Sheet | Drawing (N Male) | Drawing (N Male w/ Bead Chain)
Model 50T-142 is a 50 Ohm termination (aka dummy load) with a N male RF connector. It operates DC-8 GHz and is rated at 2 Watts RF input power. This model can be ordered with or without a bead chain.
Weight | 0.02 lbs |
---|---|
Connector Type |
