Additional information
Connector Type |
---|

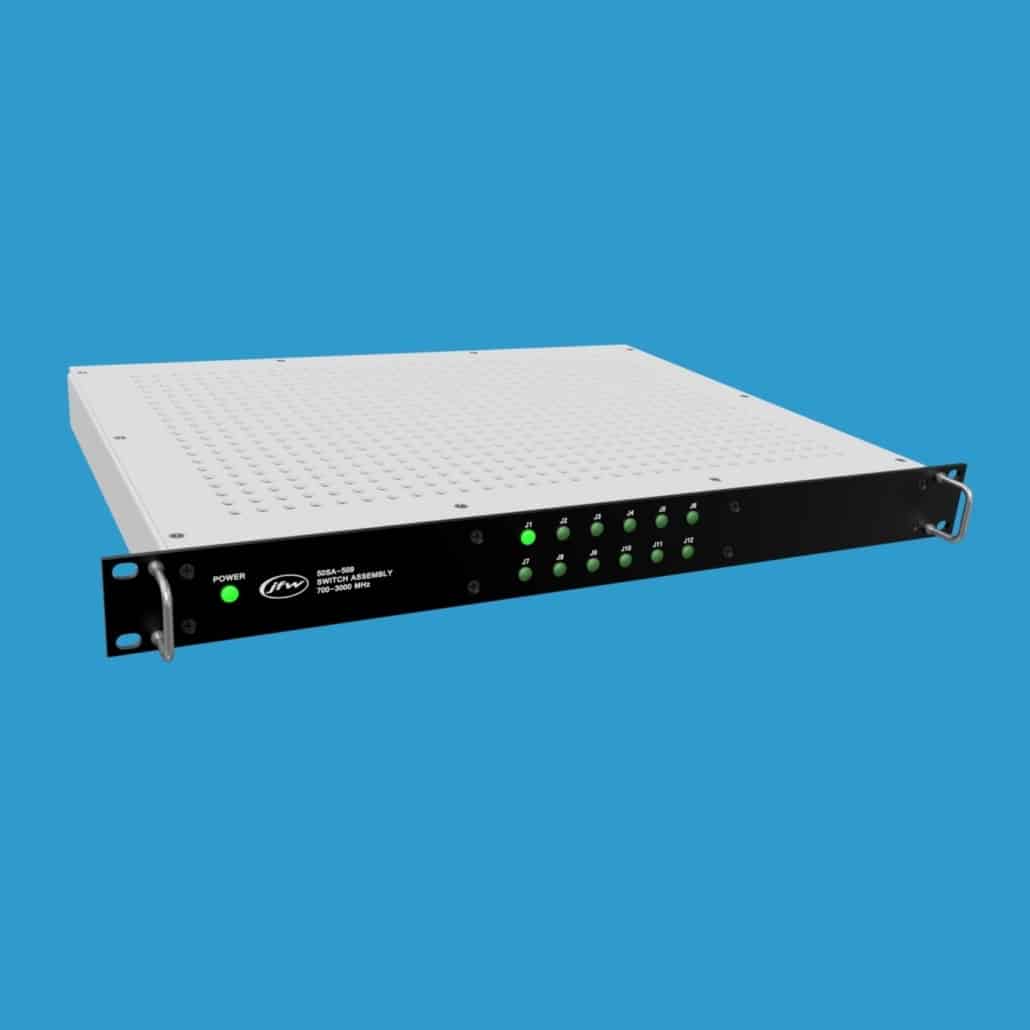

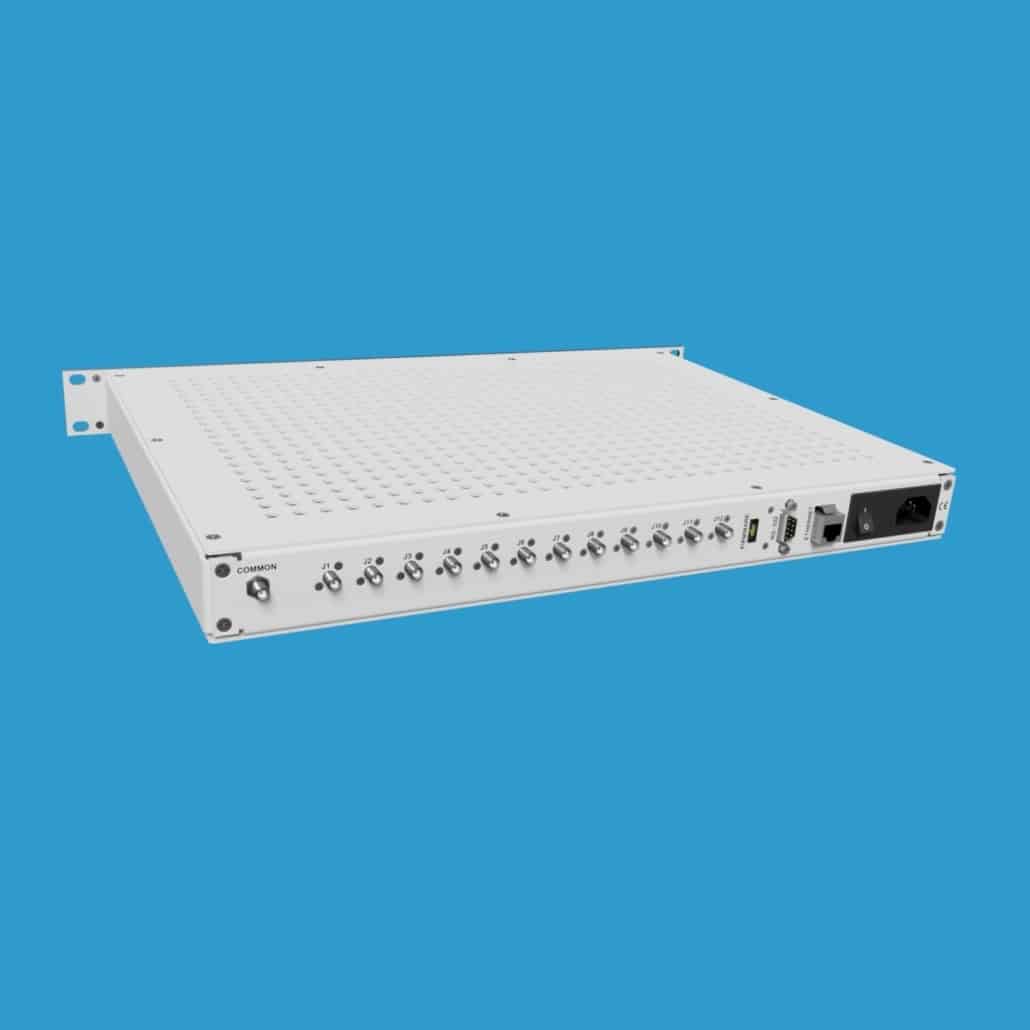

JFW Model #: 50SA-509
Impedance: 50 Ohm
Number of Switches: 1 Switch
RF Switch Type: 1P12T Self-Terminating
Frequency Range: 700-3000 MHz
RF Input Power: 1 Watt
Control: Ethernet, RS-232
RF Connectors: SMA
Documentation: Data Sheet | Drawing
